Home /Products/Portable Car Lift/1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity

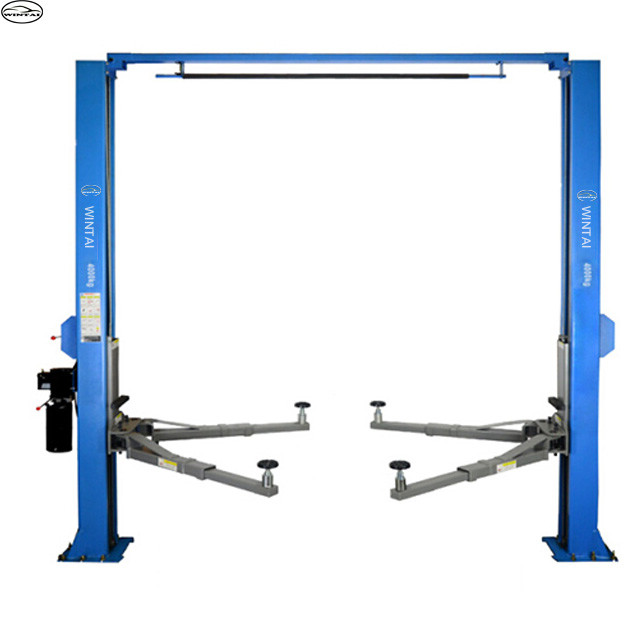

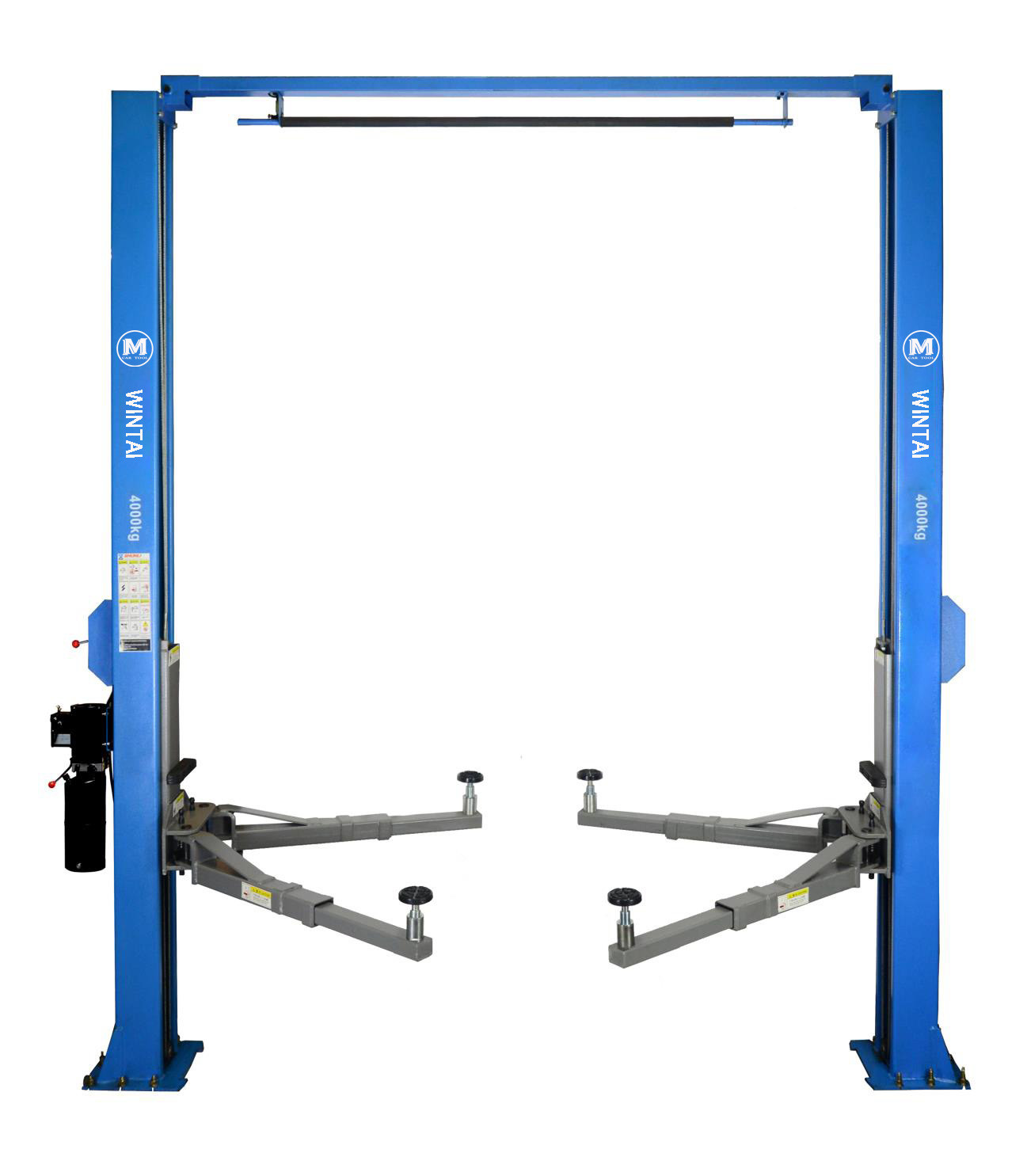

1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity

1
MOQ
us$1550/set-us$1800/set
Price
1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Lifting Capacity: 5.0T
Min Height: 85mm
Lifting Height: 1850mm
Rise Time: 50s
Descending Time: 30s
Motor Power: 2.2KW
Voltage: 220V/380V
Inner Width: 3000mm
Total Height: 3900mm
Total Width: 3560mm
Highlight:

5 Tons 2 Post Auto Lift

,

1850mm Height 2 Post Auto Lift

,

5 Tons Two Post Car Hoist
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: 250L
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets/month
Product Description
Product Description
two post car lift 5 tons two post car hoist
Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
Japanese oil sealing elements, overload protection, international brand oil pipe.
Direct driven by twin cylinders with safety steel wire as synchronization.
Polymer wear-resistance slider
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Gantry type, no obstruction on the floor.
Roof protection safety device, automatic arm lock by built in ratchet tooth.
Shot blasting and high temperature baking powder coated surface finish.
Pass CE 7.5T static test and 5.7T dynamic test.

Parameter:
Model 250L
Lifting Capacity 5.0T
Min Height 85mm
Lifting Height 1850mm
Rise Time 50s
Descending Time 30s
Motor Power 2.2KW
Voltage 220V/380V
Total Height 3900mm
Inner Width 3000mm
Total Width 3560mm
1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity 0
1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity 1
1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity 2
1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity 3
1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity 4
Specification
item
value
Design
Two Post
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
5.0T
Place of Origin
China

Guangdong
Brand Name
WinTai
Model Number
250L
Warranty
1Years
Model
250L
Lifting Capacity
5.0T
Min Height
85mm
Lifting Height
1850mm
Rise Time
50s
Descending Time
30s
Motor Power
2.2KW
Voltage
220V/380V
Total Height
3900mm
Inner Width
3000mm



1850mm Height 2 Post Auto Lift 380V Safety Operation With 5 Tons Capacity 5
