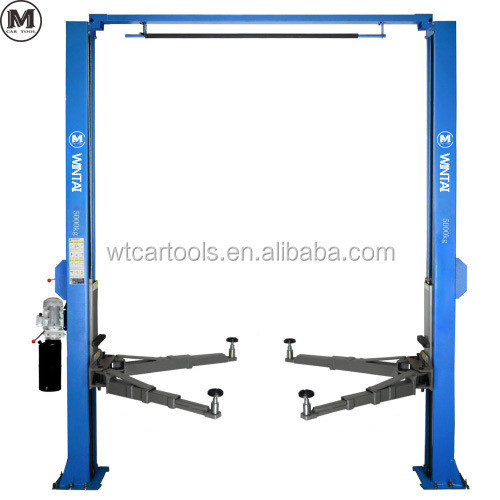

Name: 5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: 250L
Price: 1.00 USD
Availability: InStock

5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus

MOQ

$1,700.00/sets 1-9 sets

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Design: Two Post

Type: Double Cylinder Hydraulic Lift, 2 Post

Lifting Capacity: 5000kg

Warranty: 1 Years

Color: Red,grey,blue,yellow

Voltage: 110v 220v 240v 380v Optional

Lifting Time: 50s

Descending Time: 30s

Motor Power: 2.2KW

Total Height: 3900mm

Inner Width: 3000mm

Lifting Capacity: 5000kgs

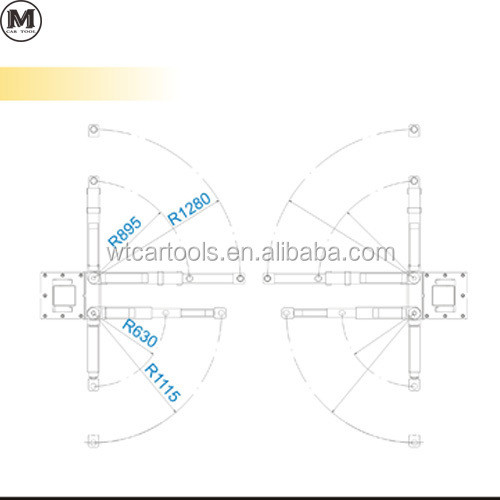

Support Arm: 2 Steps, 3 Steps

Highlight:

380v 2 Post Car Hoist

5000KGS 2 Post Car Hoist

Minibus 2 Post Car Lift

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WINTAI

Certification: CE

Model Number: 250L

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 15

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000 sets/month

Gallery

5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus

Product Description

110v 220v 240v 380v Optional Clear Floor 2 Post Car Hoist for SUV Minibus 5000KGS

Product Description

Product Application

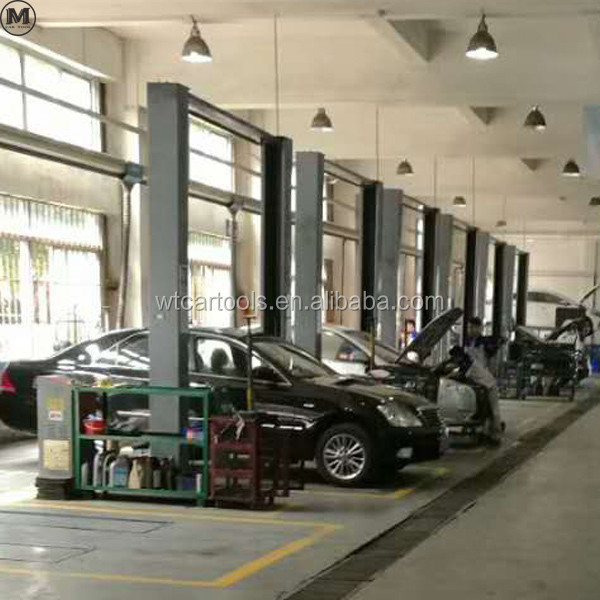

5000KGS high quality clear floor 2 post car hoist for SUV minibus is widely used in garage, auto maintenance shop

Main Features

Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
Japanese oil sealing elements, overload protection, international brand oil pipe.
Direct driven by twin cylinders with safety steel wire as synchronization.
Polymer wear-resistance slider
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Gantry type, no obstruction on the floor.
Roof protection safety device, automatic arm lock by built in ratchet tooth.
Shot blasting and high temperature baking powder coated surface finish.
Pass CE 7.5T static test and 5.7T dynamic test.

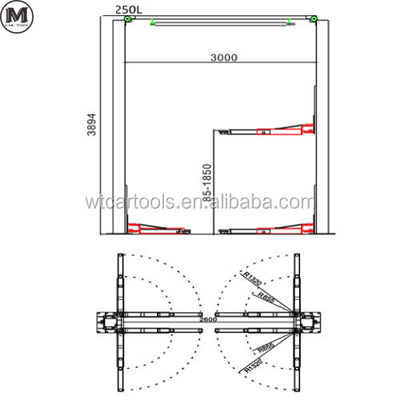

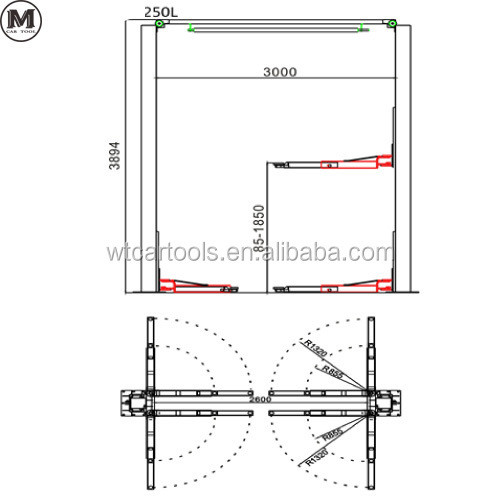

Parameter:

Model	250L
Lifting Capacity	5.0T
Min Height	85mm
Lifting Height	1850mm
Rise Time	50s
Descending Time	30s
Motor Power	2.2KW
Voltage	220V/380V
Total Height	3900mm
Inner Width	3000mm
Total Width	3560mm

Details

Details

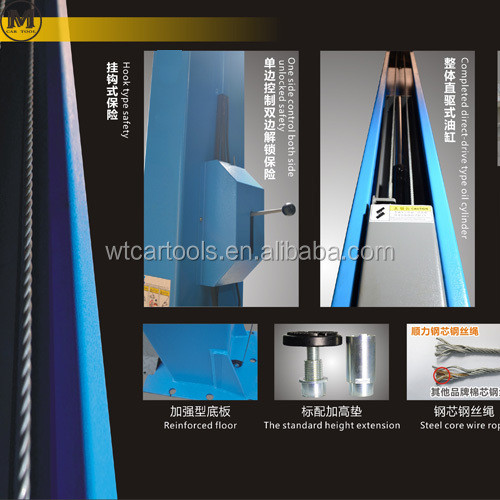

Details	Single side control both sides unlock safety Complete direct-drive type oil clinder Extra high extension Solid steel plate

Packaging

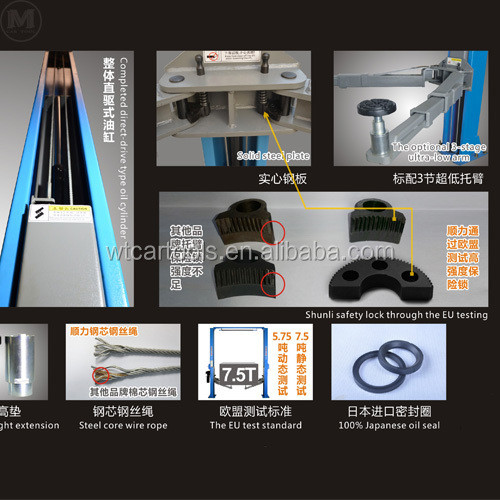

Details	3 steps arm is optional Steel core wire rope reinforced floor basement Strong safety lock imported seal
