Home /Products/Portable Car Lift/Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment

Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment

1
MOQ
$4,700.00/sets 1-9 sets
Price
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment
Features Gallery Product Description Request A Quote
Features
Specifications
Design: SCISSOR
Type: Double Cylinder Hydraulic Lift, Scissor
Lifting Capacity: 7716Lbs/3500kg, 3.5tons
Warranty: 1 Years
Max Lifting Height: 66"/1670mm
Lifting Height Of Secondary Jack: 17"/430mm
Platform Length: 165"/4500mm
Platform Width: 25"/640mm
Motor Voltage: 110V/220V/380V
Frequency: 50Hz Or 60Hz
Phase: 1ph Or 3ph
Lifting Time Of Main Jack: 30seconds
Highlight:

Customized Portable Car Lift

,

Inground Portable Car Lift

,

Wheel Alignment Portable Hydraulic Car Lift
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: WTQ350A
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description
Product Description

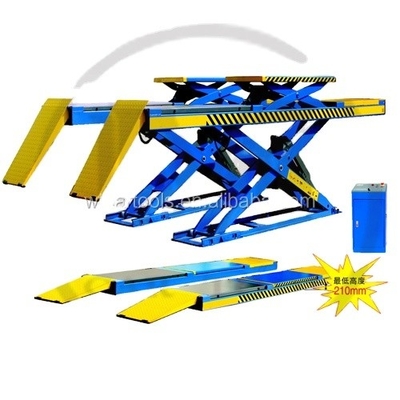

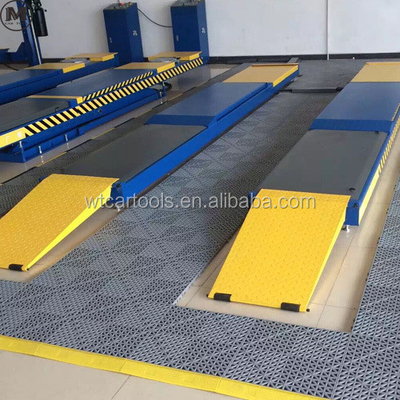

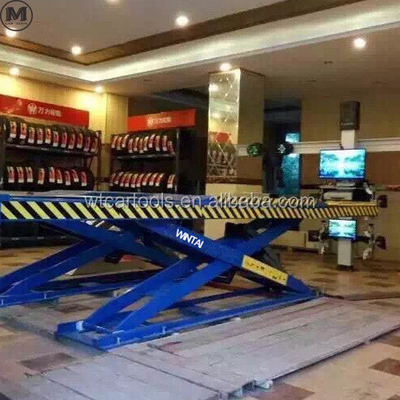

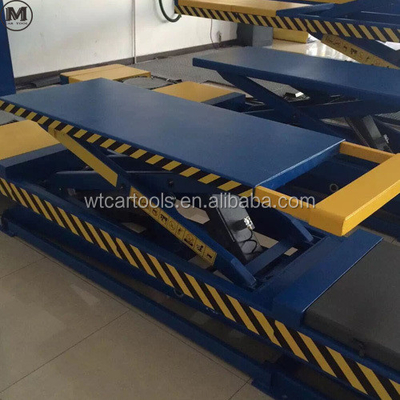

Inground type hydraulic wheel alignment scissor car lift ,minimum height 210mm
Special design for wheel aligner system, no need dig basement.

Parameter:
Lifting capacity 7716Lbs/3500kg
Overall lifting height 66”/1670mm
Min height 8.3"/210mm
Overall length 177”/4500mm
Platform width 25"/640mm
Distance between platforms 33.5”/850mm
Capacity motor 3KW
Lifting time for sub jack 20seconds
Lifting time for main jack 30seconds
Motor voltage 220V or 380V
Frequency 50Hz or 60Hz
Phase 1ph or 3ph
Net weight 4080Lbs/1850kgs
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment 0
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment 1
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment 2
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment 3
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment 4
Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment 5
Specification
item
value
Design
SCISSOR
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
7716Lbs/3500kg
Place of Origin
China

Guangdong
Brand Name
WINTAI
Model Number
WTQ350A
Warranty
1Years
Type
Scissor
Lifting Capacity
3.5tons
Max lifting height
66"/1670mm
lifting height of Secondary Jack
17"/430mm
Platform length
165"/4500mm
Platform width
25"/640mm
Motor voltage
110V/220V/380V
Frequency
50Hz or 60Hz
Phase
1ph or 3ph
Lifting time of main jack
30seconds
Packing & Delivery
standard export package
