Home /Products/Portable Car Lift/Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height

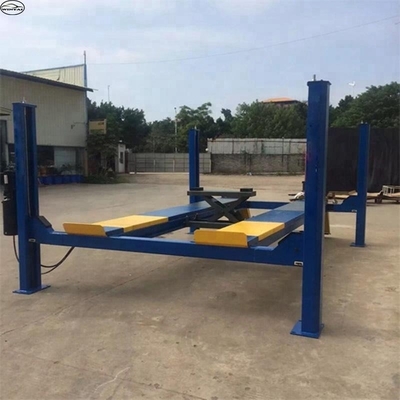

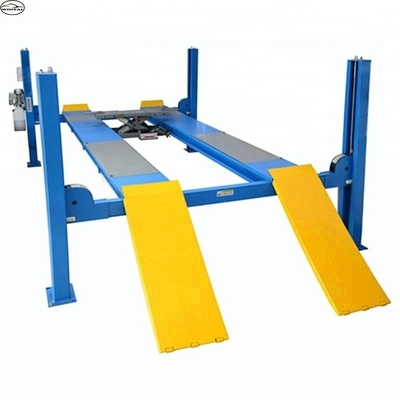

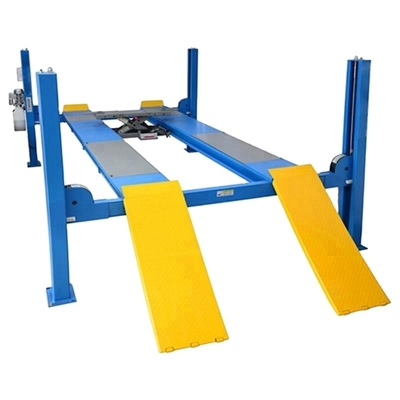

Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height

1
MOQ
$2,450.00/sets >=1 sets
Price
Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
Features Gallery Product Description Request A Quote
Features
Specifications
Design: Four Post
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 4.0T
Warranty: 1 Years
Min Height: 210mm
Lifting Height: 1750mm
Capacity Of Secondary Jack: 2000kgs
Lifting Height Of Secondary Jack: 480mm
Motor Power: 2.2KW
Voltage: 220V/380V
Total Height: 2050mm
Inner Width: 2830mm
Port: Shenzhen Or Guangzhou
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: wintai
Certification: CE
Model Number: 440D
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

440D 4 POST CAR LIFT Pass CE 6T static test and 4.6T dynamic test.

Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 0



Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 1

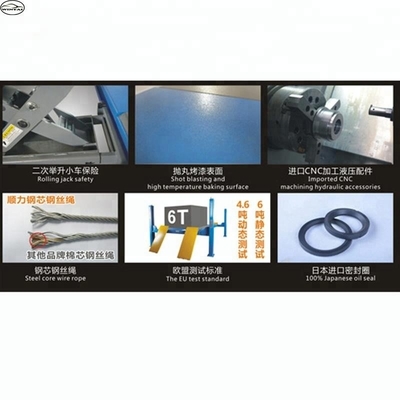

Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.

Japanese oil sealing elements, overload protection, international brand oil pipe.

Direct driven by twin cylinders with safety steel wire as synchronization.

Polymer wear-resistance slider

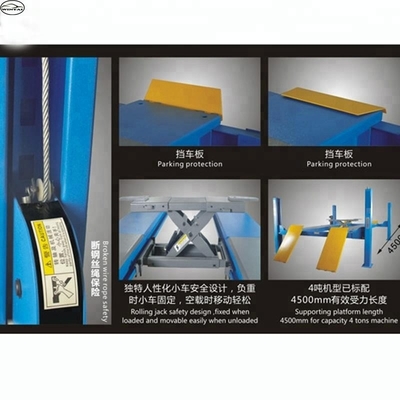

Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.

Gantry type, no obstruction on the floor.

Roof protection safety device, automatic arm lock by built in ratchet tooth.

Shot blasting and high temperature baking powder coated surface finish.

Pass CE 6T static test and 4.6T dynamic test.

Parameter:

Model

440D

455D

Lifting Capacity

4.0T

5.5T

Min Height

210mm

210mm

Lifting Height

1750mm

1750mm

Capacity of Secondary Jack

2000kgs

3000kgs

Lifting Height of secondary jack

480mm

480mm

Motor Power

2.2KW

2.2KW

Voltage

220V/380V

220V/380V

Total Height

2050mm

2450mm

Inner Width

2830mm

2920mm

Machine Dimension

4720x3164mm

6152x3385mm



Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 2Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 3Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 4Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 5Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 6Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 7Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 8Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 9Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 10





Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height 11
