11-layer Vertical Looping Parking System with Easy Operation and Space Saving Design

$150,000.00/sets 1-9 sets
Price
11-layer Vertical Looping Parking System with Easy Operation and Space Saving Design
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Parking Lift
Warranty: 12 Months
Loading Capacity: 40tons
Car Parking Quantity: 20
Vehicle Capacity Size: 5300*1950*1550/1900mm, 2000kgs
Number Of Layers: 11
Running Speed: 8m/min
Control Mode: LCD Display: Manual/automatic/swing Card
Electric Power: AC 3p/380V/50HZ Or 60HZ AC 3p/220v/60HZ Or Others
Driving Way: Motor+chain
Access Mode: Driving Forward To Store Cars, Driving Backward To Retrieve Cars
Port: Guangzhou/Shenzhen
Highlight:

11-layer vertical car parking system

,

space-saving portable car lift

,

easy operation car lift system
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Model Number: PCXL11
Payment & Shipping Terms
Packaging Details: standard export package
Supply Ability: 1000 Set/Sets per Month
Product Description
11-layer Vertical Looping Parking System
Product Overview

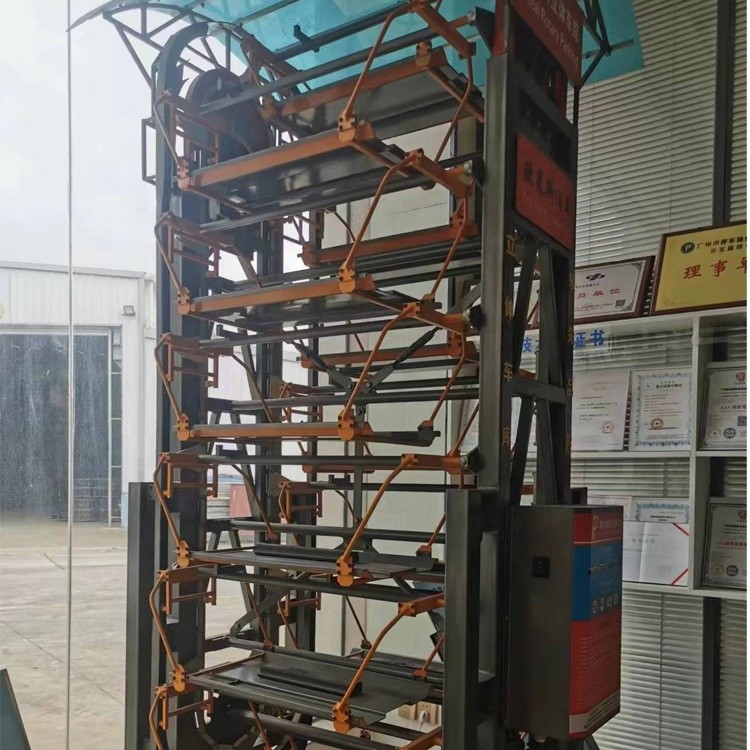

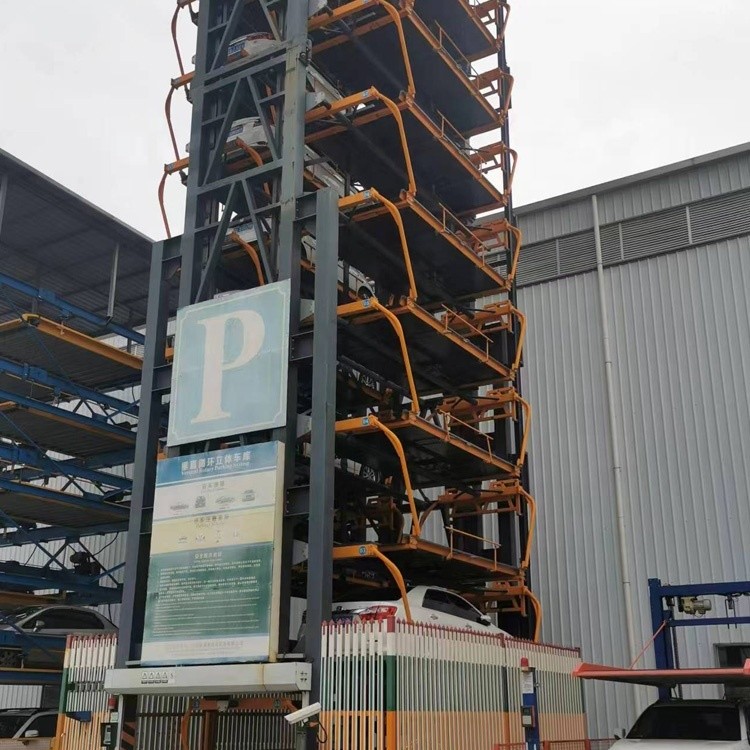

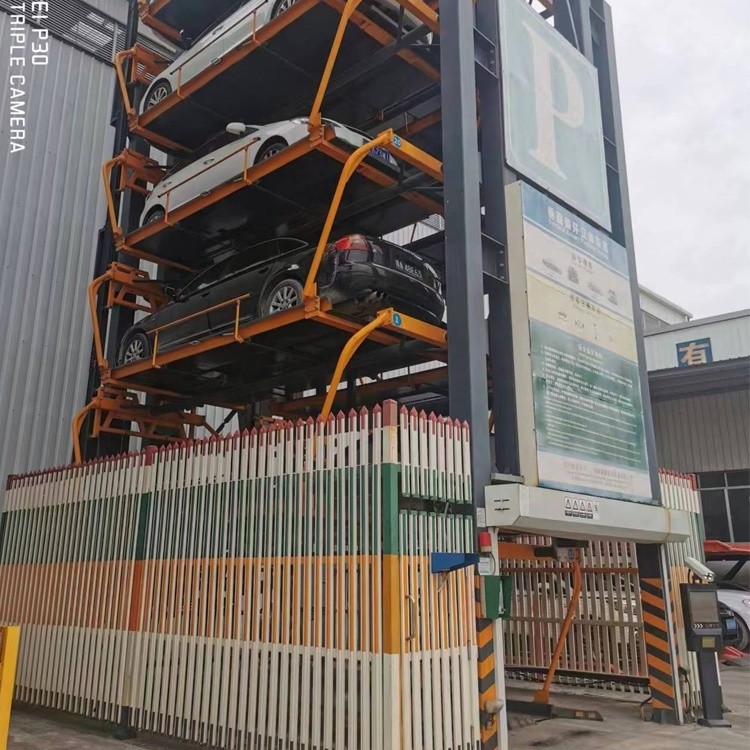

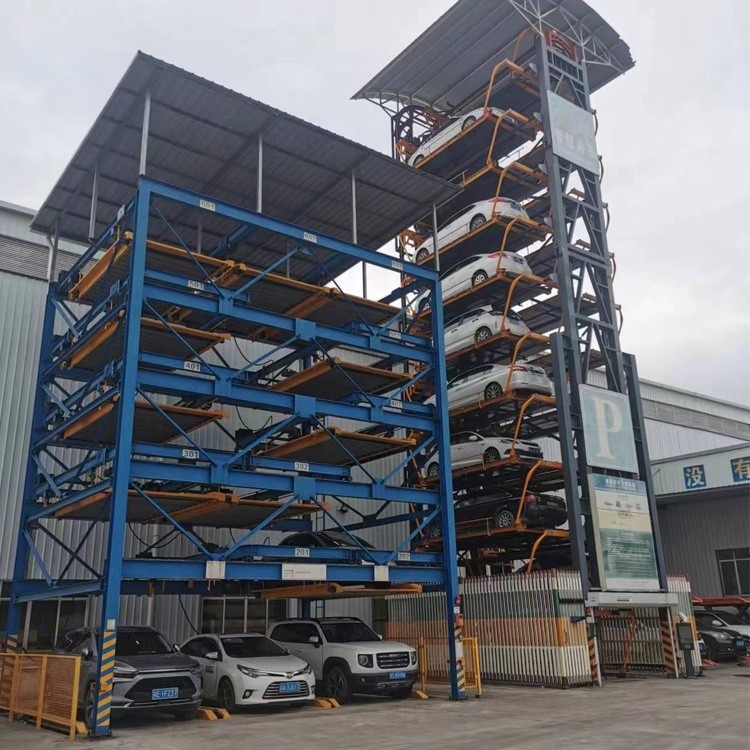

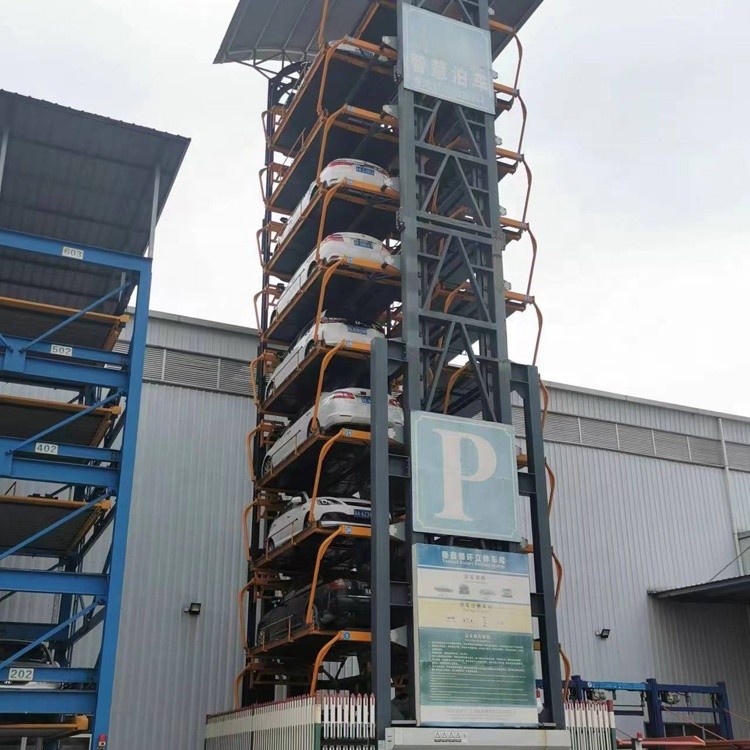

Vertical Looping Parking Equipment is a smart multistory parking system that uses circulating movement in a vertical direction to efficiently store and retrieve vehicles.

Working Principle

The drive mechanism is powered by a reduction motor, with storage brackets installed at regular intervals on the traction chain. These brackets circulate with the chain to facilitate vehicle access operations.

Key Features
  • Single power system for easy control
  • Compact footprint for space optimization
  • Convenient, reliable, and flexible operation
Ideal Applications

Suitable for hospitals, schools, shopping malls, industrial areas, and any locations with limited parking space availability.

Vertical looping parking system overview Vertical looping parking system right elevation
Right elevation
Vertical looping parking system left elevation
Left elevation
Vertical looping parking system front elevation
Front elevation
Technical Specifications
Item Specification
Model PCXL11
Car parking capacity 5300×1950×1550/1900mm, 2000kg
Number of layers 11
Running speed 8m/min
Control Mode LCD display: manual/automatic/swing card
Electric Power AC 3p/380V/50HZ or 60HZ
AC 3p/220v/60HZ or others
Driving Method Motor + chain
Access Mode Driving forward to store cars, driving backward to retrieve cars
Frequently Asked Questions
What information should we provide to get a quotation?
  • Available area dimensions for parking equipment installation
  • Maximum number of vehicles to be parked
  • Maximum dimensions of vehicles to be accommodated
  • Maximum allowable construction height
Parking system installation planning diagram
