Home /Products/Tire Alignment Machine/High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function

High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function

1
MOQ
$4,580.00/sets >=1 sets
Price
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function
Features Gallery Product Description Request A Quote
Features
Specifications
Power: P
Power Supply: 110v/220v
Balancing Speed: Nm
Max. Wheel Weight: 80kg
Warranty: 1 Years
Type: 3D
Camera: 2pcs 5 Mega Pixels
Language: Global Multi-language
Screen: 22inch
Computer: Lenovo
Suitable Rims: 12"-23"
Database: Exceed 20,000
Keywords: 3D Wheel Aligner
Automatic Tracking: Yes
Dual Screen: Optional
Highlight:

High Efficiency Automotive Alignment Machine

,

Auto Tracking Automotive Alignment Machine

,

Auto Tracking Tire Alignment Equipment
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: M881P
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets/month
Product Description
Product Description

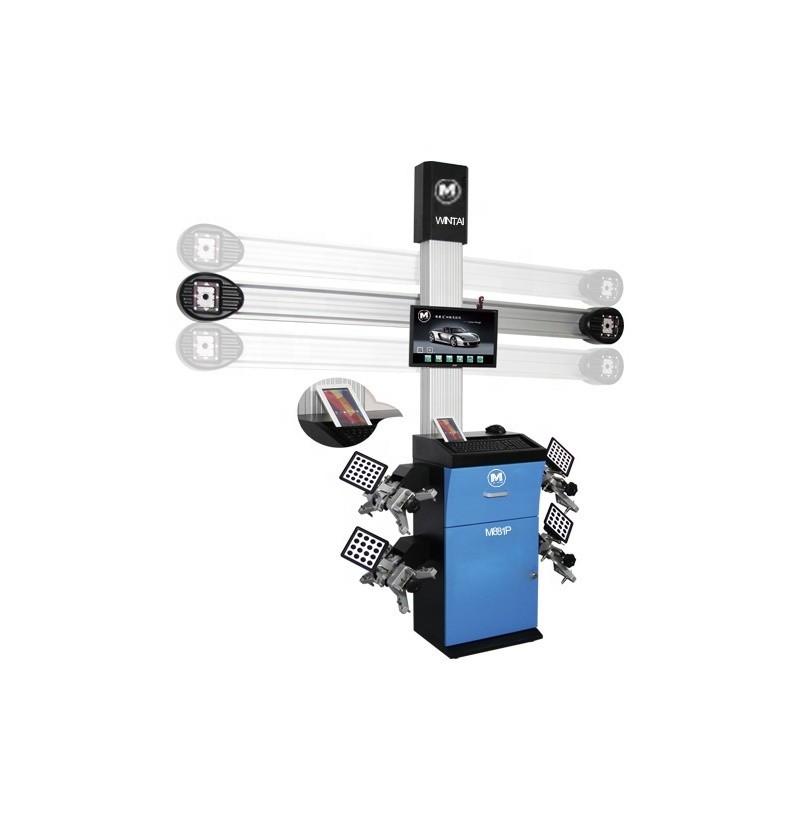

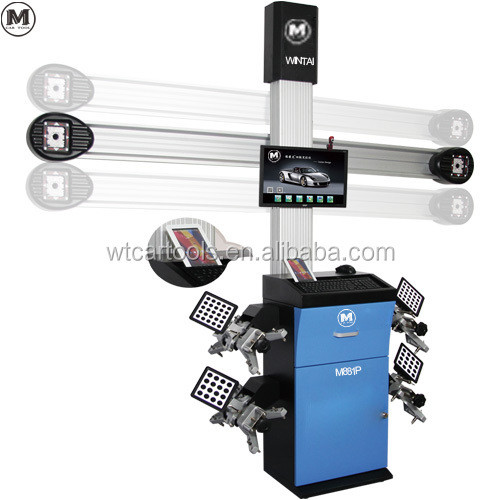

WINTAI M881P Guangzhou 3D wheel aligner system with auto tracking function
Feature:
1. Chinese Windows OS, operation process can be easily guided by "Next step" instruction.
2. Exceed 20,000 database around the world and with a lifetime update service.
3. Repeat measurement accuracy is ±0.03,which be a world's leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base, Wheel rolling radius.
5. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.
6. Humanized software design, animation video can be used to help technician more quickly complete the operation.
7. Ultra-low chassis and refit vehicle—Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.
8. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.

Standard configuration:
Options: The wheel alignment software could be installed in the Table PC with Android system. Clients can long-distance operate the wheel alignment measurement through Bluetooth.
. Parking assistant camera function: independent web camera can guide the vehicle pack in the specific location.
. Apply high strength plastic target, which is lighter, thinner and stronger.

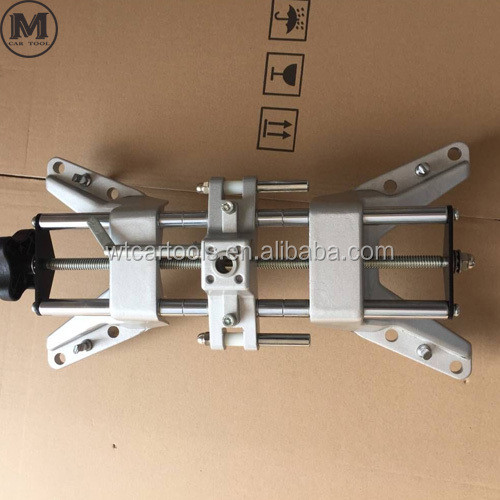

. Fast installation, suitable for all rims between 12”-23” . Double chuck, which can install both on iron and aluminum wheel hub.
. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get smaller.Intelligent

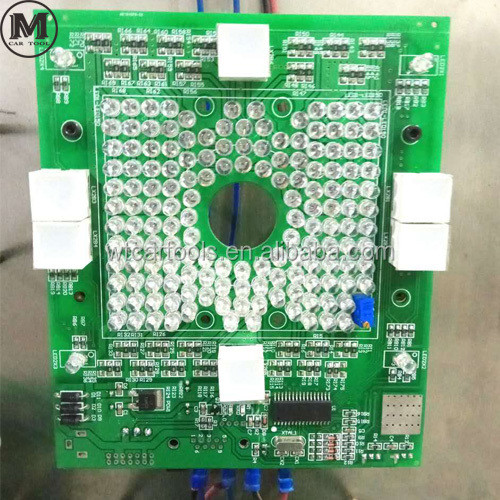

LED navigation system: the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.

According to weight of camera beam, the lifting pillar equipped with two pieces of metal counter weight, which can efficiently lower the motor working pressure, thus prolonging the working life. Equipped with low-speed motor aluminum alloy pole, which can achieve stable and unshakable lifting speed. Microcomputer control box support both hand and remote control operation. It can automatically track vehicle’s packing position according to the lift height during operation. Adjusting the height of camera beam to the best shooting position to make sure accurate measurement. Technical parameters:
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 0
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 1
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 2
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 3
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 4
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 5
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 6
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 7
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 8
High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function 9
Specification
item
value
Power
p
Power Supply
110v/220v
Balancing Speed
nm
Max. Wheel Weight
80kg
Place of Origin
China

Guangdong
Brand Name
WINTAI
Model Number
M881P
Warranty
1Years
Type
3D
Camera
2pcs 5 Mega Pixels
Language
Global Multi-language
Screen
22inch
Computer
Lenovo
Suitable rims
12"-23"
database
Exceed 20,000
Keywords
3D wheel aligner
Automatic tracking
yes
Dual screen
optional
Packing & Delivery
standard export package
