Home /Products/Tire Alignment Machine/Dual Screen 3D Four Wheel Alignment System with Lenovo M881S Computer

Dual Screen 3D Four Wheel Alignment System with Lenovo M881S Computer

1
MOQ
$3,900.00/sets 1-1 sets
Price
Dual Screen 3D Four Wheel Alignment System with Lenovo M881S Computer
Features Gallery Product Description Request A Quote
Features
Specifications
Power: P
Power Supply: 110v/220v
Balancing Speed: Nm
Max. Wheel Weight: 80kg
Warranty: 1 Years
Type: 3D
Camera: 2pcs 5 Mega Pixels
Language: Global Multi-language
Screen: 22inch
Computer: Lenovo
Suitable Rims: 12"-23"
Database: Exceed 20,000
Keywords: 3D Wheel Aligner
Automatic Tracking: Optional
Dual Screen: Yes
Highlight:

Dual Screen Four Wheel Alignment System

,

3D Four Wheel Alignment System

,

Dual Screen 4 Wheel Alignment Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: M881S
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Set/Sets per Week
Product Description

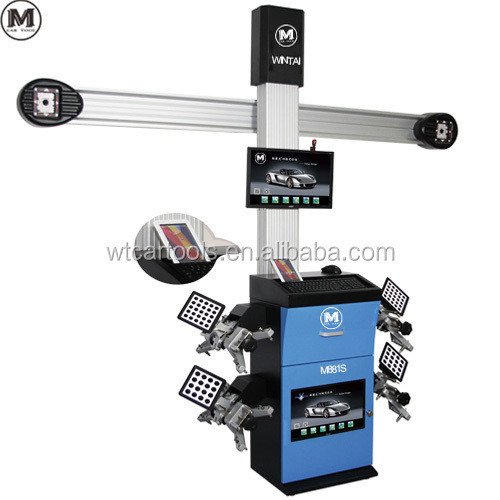

Dual Screen 3D Four Wheel Alignment System with Lenovo M881S Computer

Upgrade Your Workshop with Lenovo M881S Dual Screen 3D Four Wheel Alignment System

Lenovo M881S Dual Screen 3D Four Wheel Alignment System
Key Features
  • Chinese Windows OS with intuitive "Next step" operation guidance
  • Over 20,000 global vehicle database with lifetime update service
  • World-leading repeat measurement accuracy of ±0.03
  • Comprehensive measurement angles: Toe, Camber, Caster, S.A.I, thrust angle, setback angle, max turning angle, wheel tread, wheel base, and wheel rolling radius
  • Android mobile and laptop support for remote data display
  • User-friendly software with animation videos for technician guidance
  • Compatible with ultra-low chassis, refit vehicles (Volkswagen, Audi), XLWB, and vehicles with ESP function
  • Secondary jack-up function for convenient Camber adjustment
Standard Configuration & Options
  • Optional Android tablet PC installation with Bluetooth remote operation capability
  • Parking assistant camera function with independent web camera for precise vehicle positioning
  • High-strength plastic targets - lighter, thinner, and more durable

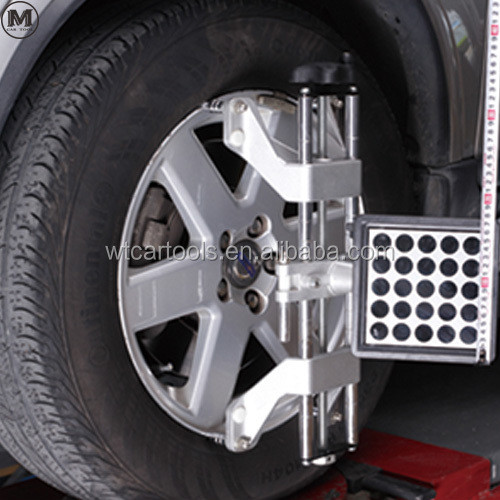

  • Fast installation compatible with all rims between 12"-23"

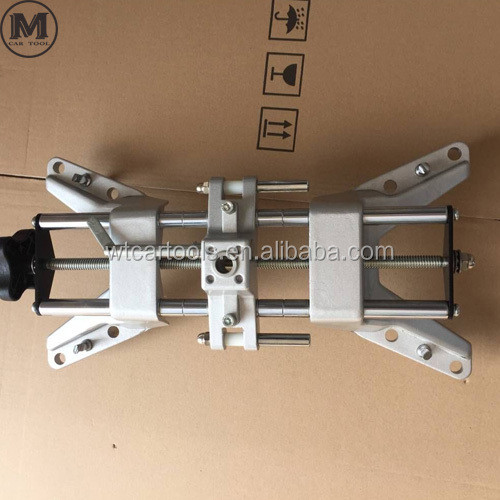

  • Double chuck design for both iron and aluminum wheel hubs
  • 5 million high-definition camera ensures accuracy with smaller target plates

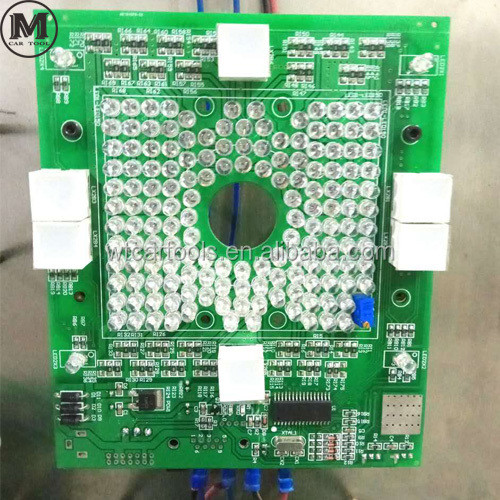

  • Intelligent LED navigation system for screen-free operation guidance

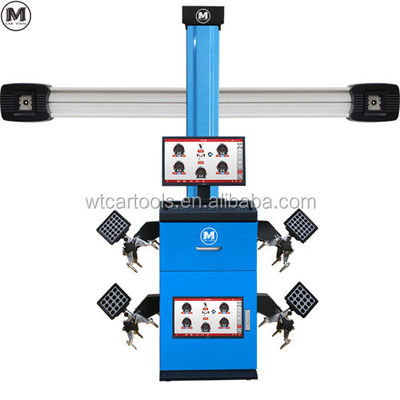

  • Dual display LCDs for clear data visibility from any angle, enhancing work efficiency
Software Display
Wheel alignment software interface display 1 Wheel alignment software interface display 2 Wheel alignment software interface display 3 Wheel alignment software interface display 4 Wheel alignment software interface display 5 Wheel alignment software interface display 6
Technical Parameters
Measurement Items Front Wheel Precision Front Wheel Range Rear Wheel Precision Rear Wheel Range
TOE ±0.02 ±20° ±0.02 ±20°
CAMBER ±0.02 ±15° ±0.02 ±15°
S.A.I ±0.02 ±26° x x
CASTER ±0.02 ±26° x x
THRUST ANGLE x x ±0.02 ±5°
