Features

Specifications

Features: Reliable,stable,easy To Operate

Product_Name: Tire Alignment Machine

Measurement: Fully Electronic

Pressure Gauge: 0-12kg/cm2

Car Fitment: Abarth

Automatic: Yes

Power Source: Electric

Working Way: Independent Or With Wheel Aligner

Power Supply: 220v

Target Quantity: 4PCS

Highlight:

Truck wheel alignment machine with Bluetooth

Commercial wheel axle alignment system camera-based

Bus wheel alignment equipment 2.4GHz wireless

Basic Infomation

Place of Origin: China

Brand Name: SANYING

Model Number: C21

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

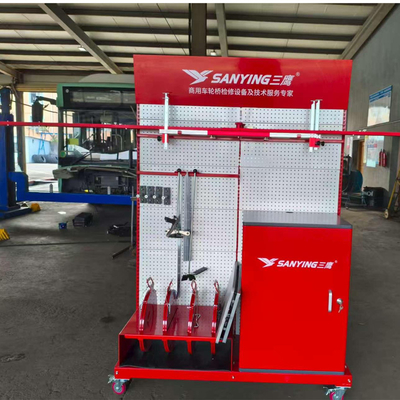

Truck Wheel Alignment Machine Camera based commercial wheel axle alignment system 2.4GHz Bluetooth wireless transmission technology Bus Wheel Alignment Equipment

Product Description

Truck Wheel Alignment Machine - Camera-Based Commercial Wheel Axle Alignment System

Advanced 2.4GHz Bluetooth wireless transmission technology for bus and commercial vehicle wheel alignment equipment.

Testing Capabilities

Single toe-in, total toe-in, camber angle, caster angle, steering synchronization, axle deflection, axle parallelism, maximum steering angle, steering forward spread, ball head clearance, thrust angle, and more.

Product Features

Advanced camera measurement mode with complete functions and simple operation
Embedded computer system running independent Linux OS and underlying software
Highly integrated camera sensor assembly with data processing capabilities and high-precision infrared fill lights
Wave-shaped measurement target with multiple target surfaces for different working conditions
Dual wheel compensation functions: rolling compensation and manual compensation
3D modeling based on vehicle frame geometric centerline for accurate measurements
Comprehensive parameter measurement including toe-in, camber, steering synchronization, and axle deflection
WIFI communication with stable performance, low power consumption, and long-distance transmission
Resistant to temperature changes, magnetic field interference, and strong light interference
Camera sensor assembly provides up to twelve hours continuous operation

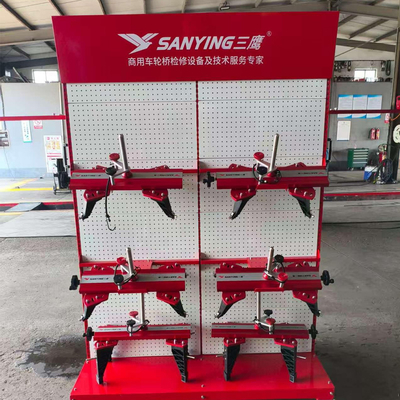

Multiple professional wheel rim adapters for different user requirements
65W fast charging with approximately 1-hour charging time
Camera self-calibration function with strong working condition adaptability
Core components constructed from 7-series magnesium aluminum alloy
Centralized measurement process using complete computer system for fast, efficient operation
Miniaturized components with bump resistance for convenient mobile operation

Measurement Principle

The Sanying camera-based commercial wheel axle positioning system utilizes image recognition technology with patented photography methods. Using the vehicle frame centerline as reference, it measures wheel bridge positioning angles for trucks, buses, tire service centers, and commercial vehicle repair companies, providing fast and accurate wheel bridge positioning solutions.

Dynamic Detection & Adjustment

Features dynamic real-time detection and adjustment functions. Easy operation with wheel hub adapters that accommodate all tire clamping requirements within 245/70R19.5-315/60R22.5 range. Single wheel inspection time under 5 seconds, double rear axle vehicle inspection under 15 minutes. Adjustment results dynamically displayed on screen with clear pass/fail indicators for operator identification.

Measurement Parameters

Measurement Items	Measurement Range	Measurement Accuracy
Total Toe	±20°	±2°
Single Toe	±10°	±1°
Camber	±20°	±2°
Caster	±20°	±2°
Dip Angle	±5°	±2°
Maximum Steering Angle	±65°	±3°
Steering Synchronization	±10°	±4°
Vehicle Axle Deviation	±5°	±2′
