4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height

2sets
MOQ
2500$
Price
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height
Features Gallery Product Description Request A Quote
Features

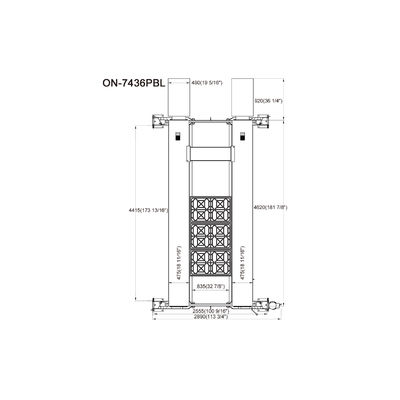

Specifications
Lifting Capacity: 3600kg
Lifting Time: ≤50S
Overall Height: 2476mm (97 1/4")
Lifting Height: 2100mm (82 11/16")

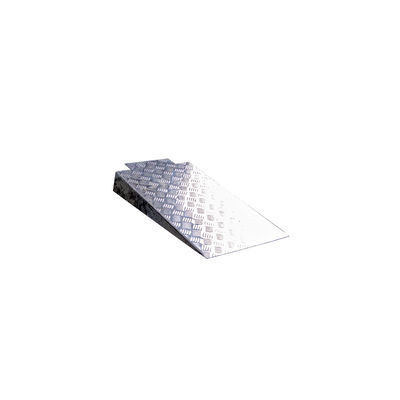

Overall Length (Inc.Ramps): 5540mm (218 1/8")
Overall Length (No Ramps): 4620mm (181 7/8")
Overall Width: 2890mm (113 3/4")
Width Between Columns: 2385mm (93 7/8")
Highlight:

4 post car parking lift stacker

,

3600kg capacity car parking lift

,

2100mm lifting height garage stacker
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: 7436PBL
Payment & Shipping Terms
Packaging Details: steel frame
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability: 500sets/month
Product Description

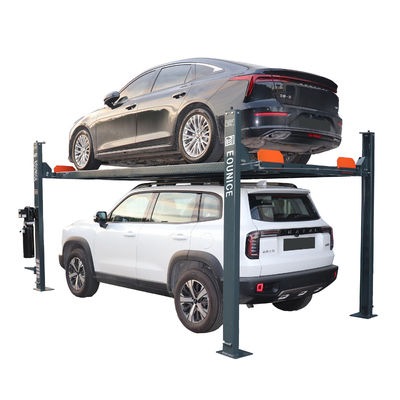

4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm lifting height


* 3,600Kg (8,000LBS.) lifting capacity.
* Single-point safety lock release by manual.
* Mechanical locks automatically engaged into position in ascending process.
* Out of level protection, safe and reliable.
* Self-lubricating pulleys and pre-tensioned wire rope for extended service life.

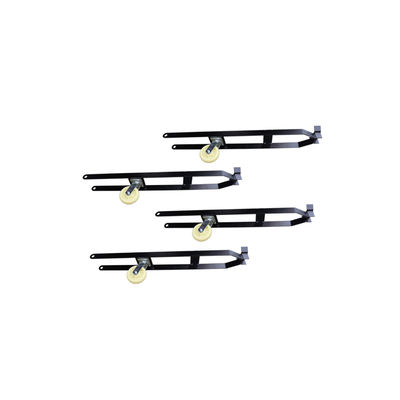

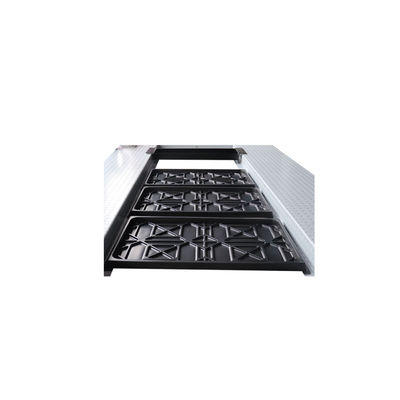

* Skid proof diamond platform.Standard with oil trays (3pcs), jack tray (1pc) and caster kits (4pcs).

* OEM/ODM service can be offered
Lift color can be offered as customer request.

1. The minimum ground height is 125mm(4 15/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
2. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively
ensure the basic level of the two runways in the locked state and is less affected by ground factors.

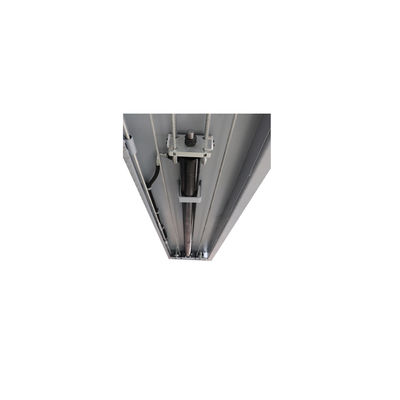

3. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts
pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be
effective to ensure the safety of use.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can
ensure strong adhesion, bright color and beautiful.
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 0
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 1
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 2
