High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer

1
MOQ
us$16600/set-us$18100/set
Price
High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer
Features Gallery Product Description Request A Quote
Features
Specifications
Standard Machine Installation Size: L*W*H=7500*3600*3200mm
Max. Car Size: L*W*H=5600*2100*2080mm
Time Consumption: 120s/car
Power Supply Requirements: AC380V/50Hz/3Ph/35KW, 14smm Copper Cable
Water Pump Motor Power: Pump 15KW/100Bar Working Pressure, Max. 120Bar
Fan Motor Power: Built In 3 Pcs 4KW Blowers Total 12KW
Shampoo Consumption: Approx. 40ml/car
Foam Consumption: Approx. 40ml/car
Water Wax Consumption: Approx. 80ml/car
Magic Color Bubble Consumption: Approx. 80ml/car
Water Consumption: Approx. 150L/car
Electricity Consumption: Approx. 0.75KWꞏH/car
Drive System: Variable Frequency Speed Control + Digital Driver
Highlight:

Automatic Car Washing Machine

,

Automatic Car Washing Machine

,

Energy Efficiency Fully Automatic Car Wash

Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: T12
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Supply Ability: 100 sets/month
Product Description

Special Feature

Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.

Configuration List
Configuration Standard Optional
Customized electricity motor
Magic color bubble function
Waste water recycling system
Chassis wash function
360-degree high pressure water wash
Foam function
Shampoo function
Wax rain
Built in 3Pcs * 4KW Air dry
Self-guided parking system
Vehicle length detection
Vehicle width detection
Automatically adjust
LED alert system
Washing quantity counting function
Fault self-test function
Wireless remote control system
Galvanized frame
Technical Parameters

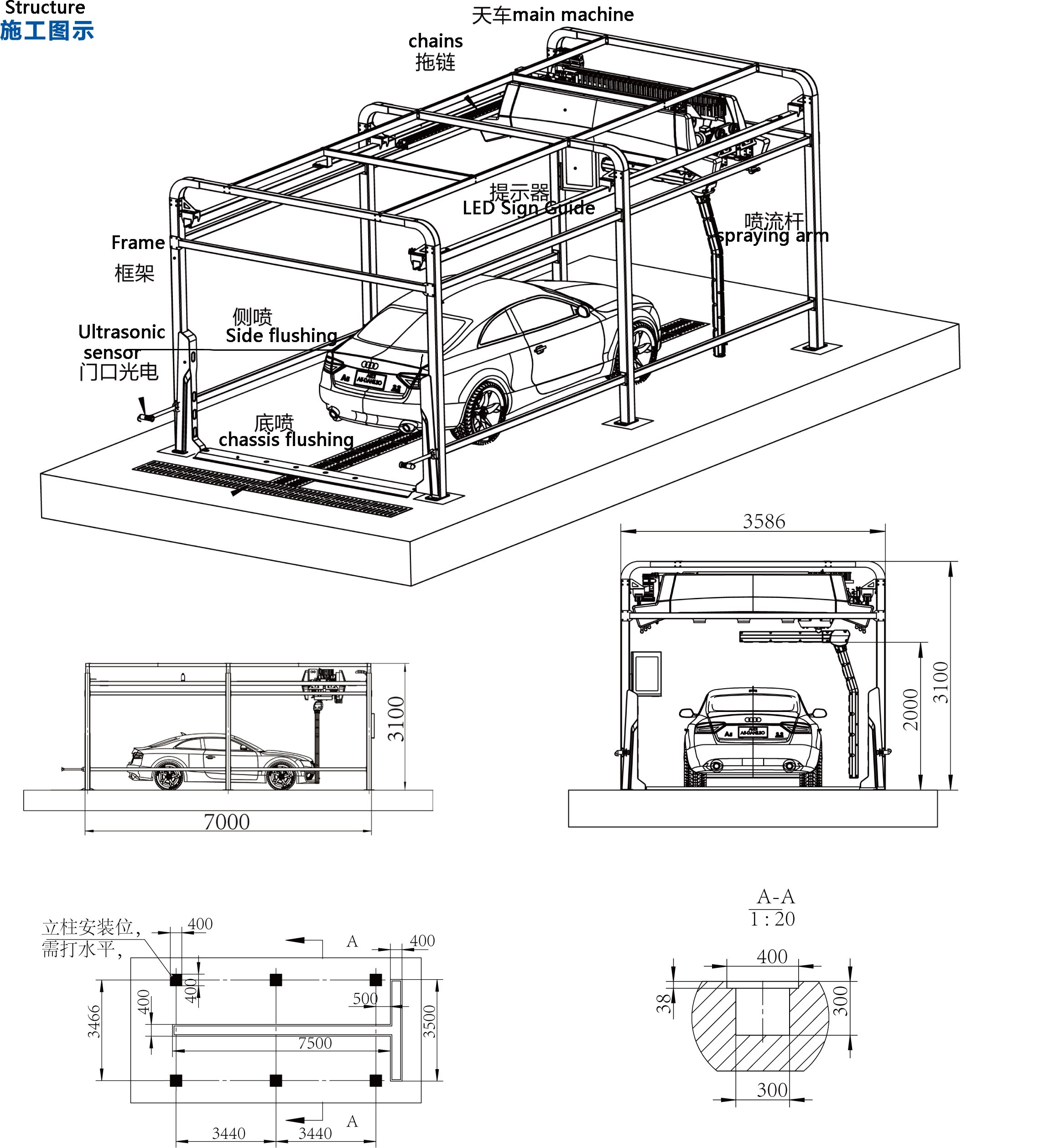

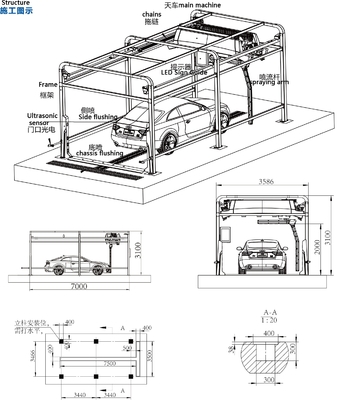

Size Standard Machine Installation Size L*W*H=7500*3600*3200mm (24.6ft *11.81ft *10.50ft)
Consumption


per car
Max. Car Size L*W*H=5600*2100*2080mm (18.37ft *6.89ft *6.82ft)
Shampoo Consumption Approx. 40ml/car
Foam Consumption Approx. 40ml/car
Water Wax Consumption Approx. 80ml/car
Magic color bubble consumption Approx. 80ml/car
Water Consumption Approx. 150L/car
Electricity Consumption Approx. 0.75KWꞏH/car
Time Consumption 120s/car
Specifications

Power Supply Requirements AC380V/50Hz/3Ph/35KW, 14smm copper cable
Air Switch 100A air switch
Water Pump Motor Power Pump 15KW/100Bar working pressure, Max. 120Bar
Fan Motor Power Built in 3 pcs 4KW blowers total 12KW
Remote Control Remote Control

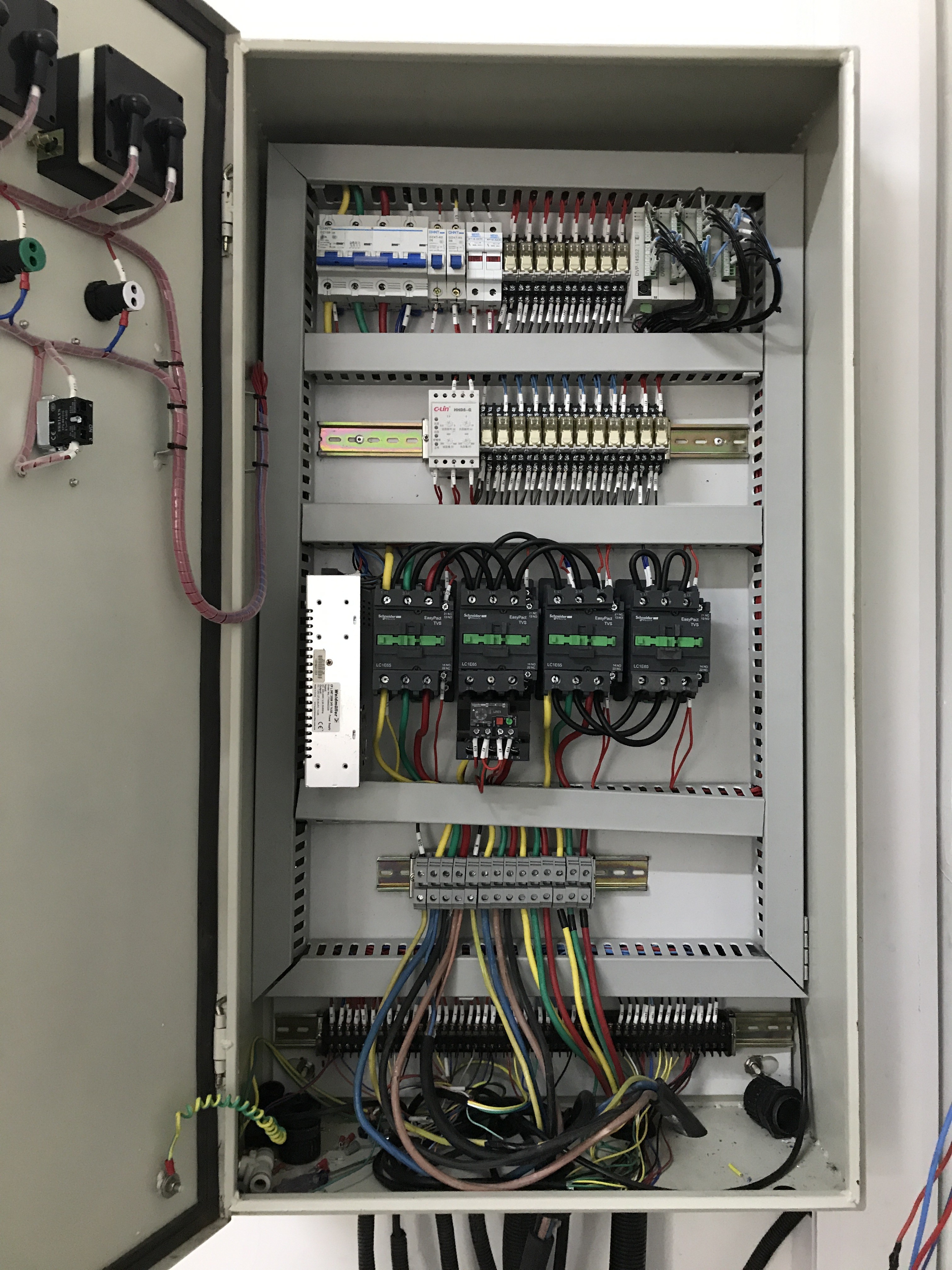

Central Processing Unit PLC Industrial intellient digital control system
Drive System Variable frequency speed control + digital driver
Detection System Intelligent three-dimensional detection system
Sensing System Ultrasound+ Absolute value of the digital encoder, 1 sensors



High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 0


High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 1High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 2

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 3

Company Profile

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 4

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 5

Aomatic car washing machine-Guangzhou Wintai Cartools Co.,Ltd is a professional manufacturer of car washing machine equipment established in 2013, integrating R&D, production, sales and service. WINTAI focuses on high –end car washing machine manufacturing and design, and strives to provide consumers with higher quality car washing machine equipment.

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 6

The workshop is located in Xi'an and has an export office in Guangzhou. Xi'an is an international transportation hub with strategic advantages for export transportation.

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 7

WINTAI specializes in the research and development of fully automatic computer car wash equipment. Based on the absorption of advanced technology from the same industry in the world, WINTAI adopts a unique design concept and combines the domestic car wash market conditions. After years of continuous research, testing and testing, and further innovation, we have developed a new generation of stable of T series surrounding high-pressure non-contact wipe-free automatic computer car wash system .It’s cost-effective, reliable and with stable performance. The original series of “L” type jet cleaning design mode is extremely humanized, which can better clean the surface of the car body at a large angle. The appearance is simple and applicable, breaking the drawbacks of the old huge equipment, heavy and can not be installed indoors, so that customers can obtain Top Wash, Top Suitable, Top stable and Top cost-effective car wash system.

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 8

Among them, T9 and WT-390 are the leading products of our company. Both T9 and WT-390 have self-service payment systems. This is a further elimination of labor compared to the traditional car wash industry, and to make up for the short-term business hours. 24h all-day business can solve the problem of car owners car wash time, but also create more benefits for investors.



WT-390 is more inclined to meet the basic needs of the current market. It is a suitable choice for the car wash industry or the general washing station. The T9 has a larger flushing pressure, the maximum flushing pressure can reach 130bar. It’s with 4pcs of 5.5kw fans, and the surrounding flushing speed reaches 27 seconds in 360 degrees around the car, its washing speed is faster. Secondly T9 has more washing modes compared to the general car washing machine. The car owner can choose different modes according to actual needs. In this way, the owners don’t need consider if the car has to be washed due to some parts of car are clear , this will make car washing frequency more and bring more profit for investors.

High Pressure Automatic Car Washing Machine Energy Efficiency Touchless Car Washer 9



In short, both T9 and WT12 can meet export requirements. We also export these products to Malaysia, Armenia, Kazakhstan, Russia, Nigeria and the vast European countries.
