Self Service 360 All Round Rollover Car Wash Systems With Detergent Spraying

1
MOQ
us$24500/set-us$27800/set
Price
Self Service 360 All Round Rollover Car Wash Systems With Detergent Spraying
Features Gallery Product Description Request A Quote
Features
Specifications
Machinery Test Report: Not Available
Washing System: PLC Control
Application: Car Body Washing
Pressure: 80-120Bar
Water Wax Consumption: Approx. 80ml/car
Rail Length: 18000mm
Installation Dimensio: 8000*3700*3400(mm)
Track Length: IS 8000mm*6mm
Output Power: 1.8kw
Hose Length: 25 Feet
Safety Detecting System: BANNER
Shipping: Sea/railroad
Liquid Water Pump: 304 Stainless Steel
Automatic: Yes
Fan Motor Power: 5.5KW/set X4sets
Highlight:

Self Service Rollover Car Wash Systems

,

Detergent Spraying Rollover Car Wash Systems

,

360 All Round Automatic Car Washer

Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: T9 PLUS
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 sets/month
Product Description
Self Service 360 All Round Rollover Car Wash Systems With Detergent Spraying
System Overview
Self Service 360 All Round Rollover Car Wash System

Advanced automated car wash system featuring intelligent chemical consumption control and comprehensive cleaning cycles for superior vehicle maintenance.

Special Features

Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.

Cleaning Modes
  • Fine Mode (6 minutes/car): Start → Chassis/wheel rim flushing → Colorful high foam detergent spraying → High pressure car body flushing → Low foam detergent spraying → High pressure car body flushing → Wax spraying → Wax rain → Drying
  • Fast Mode (2 minutes/car): Start → Chassis/wheel rim flushing → Colorful high foam detergent spraying → High pressure car body flushing → Wax spraying → Wax rain → Drying
Standard Cleaning Agents
  • Low foam cleaning liquid: Also called wipe-free cleaning liquid, containing soil loosening agent
  • High foam cleaning liquid: Also called magic shampoo, suitable for extremely dirty cars with car care function
  • Colorful bubble cleaning liquid: Also called colorful waterfall
  • Water wax: Protective wax coating
Technical Specifications
Three-phase electricity 380V/55Kw
Electricity requirement 380V/18.5Kw/50Hz 380V/22Kw/50Hz (optional)
Installation dimension 8000×3800×3400 (mm)
Maximum car wash size 6000×2500×2050 (mm)
Track length 8000mm×6mm IS 8000mm×6m
Weight/Volume 2650kg/13m³
Water pump motor Siemens energy-saving motors 380V/18.5
Fan motor Mobile fan 5.5kw×(4+2)
Liquid water pump 304 stainless steel
360 high-pressure flushing 304 stainless steel rotating arm
Flushing pressure 80-120kg
Car wash time Quick car wash: 2min | Fine car wash: 6min
Liquid consumption Metering pump/20-50ml
Power consumption 0.5-0.8 kWh/per
Water consumption 100-200L

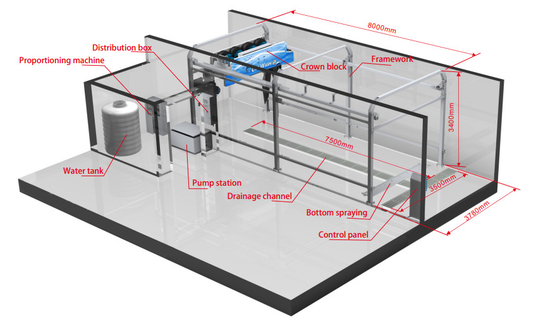

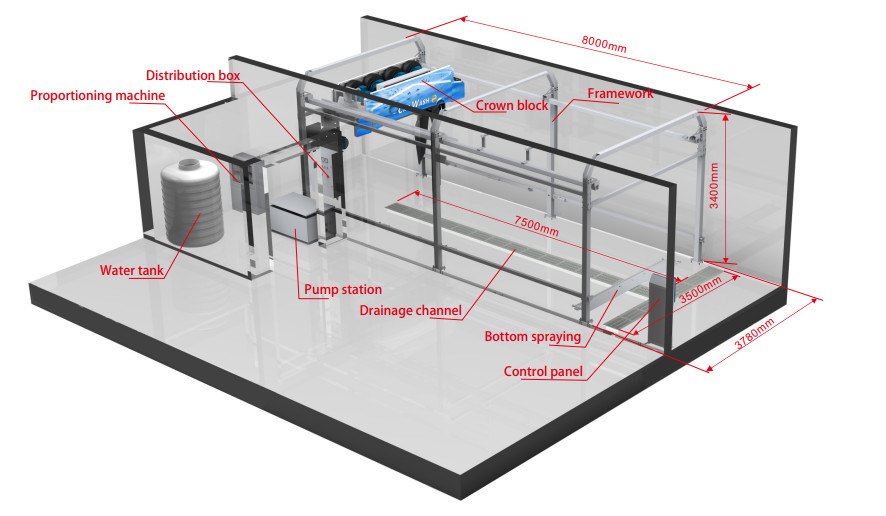

Car wash system operation and components
