Home /Products/Truck Spray Booth/Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans

Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans

1
MOQ
$25,800.00/sets >=1 sets
Price
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths, Spray Booths
Power: 39KW, 39KW
External Size: 15150*6700*5600mm
Internal Size: 15000*5000*5000mm
Voltage: 110V/220V/ 380V
Disc Dia.: NM
No Load Speed: NM, NM
Warranty: 1 Year
Color: Red,Orange,White,Blue
Light: LED
Basement: Pits Or No Basement
Ceiling Filter: F5/EU5/600G
Exhaust Fan: 2 Sets Of 11KW Fans
Suitable Vehicle: Bus,truck
Highlight:

Diesel Burner Truck Spray Booth

,

220V Truck Spray Booth

,

11KW Fans Bus Paint Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: WT15000, WT15000
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 sets/month
Product Description
Diesel Burner Spray Paint Booth for Bus Truck and 110V/220V/380V Voltage Manufacturing
Product Description
WT15000 High-efficient diesel burner car bus truck spray paint booth:

Wallboard: Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional ) 75mm thickness; EPS foam Density is 14kg/m³. The Colorful steel skin boards have been HDG(hot dip galvanizing). High quality galvanized steel roof panel.

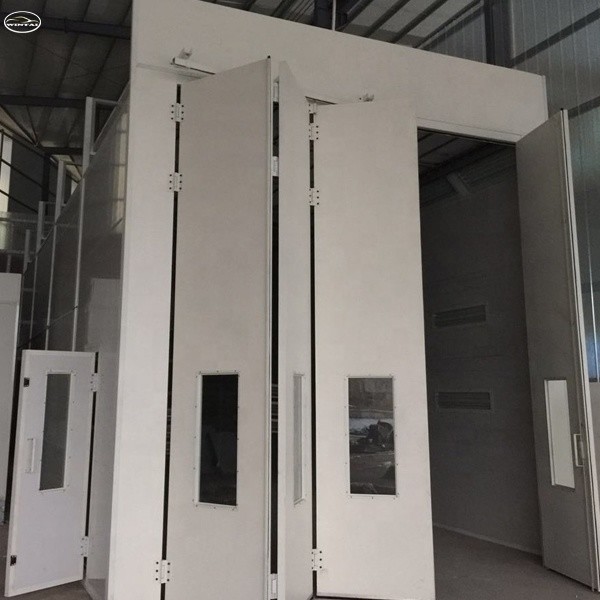

Door: 4 pcs of front doors with aluminum bordure. Size: 4000*4500(mm)(W*H). 2 pc of emergency doors 800*1800mm(W*H)/pc.
Intake Fan(2groups): 1 sets of 11kw intake fan/per group, total 2 units of 11kw intake fans. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow:64,000m3/h.
Exhaust Fan(2rgoups):1 set of 11kw exhaust fan/per group, total 2sets of 11kw exhaust fans, Air flow:64,000m3/h.
Filtering: Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture
granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%.
Burner: Original Italy RIELLO RG5S diesel burner, 260,000Kcal/h per unit, total 2 units of burners and 520,000Kcal/h. Max
temperature at 80°C.
Heat Exchanger(2sets): it’s made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.
LED Lighting System: Ceiling lights have 18units×4pieces of 16w LED lamps. Side light has 22units×2pieces of 16kw LED lamps. Total 116pieces of 16w LED lamps. 900 Lux.
Control System: Microcomputer control system. Cabinet type, easy to control and maintain.

Remark:
Any sizes can be customized;
3D lift is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 0
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 1
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 2
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 3
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 4
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 5
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 6
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 7
Specification
item
value
Type
Spray Booths
Power
39KW
External Size
15150*6700*5600mm
Internal Size
15000*5000*5000mm
Voltage
110V/220V/ 380V
Disc Dia.
NM
No Load Speed
NM
Place of Origin
China

Guangdong
Brand Name
WINTAI
Model Number
WT15000
Warranty
1 year
Type
Spray Booths
Power
39KW
No Load Speed
NM
Model Number
WT15000
Color
Red,Orange,White,Blue
Light
LED
Basement
Pits or no basement
Ceiling Filter
F5/EU5/600G
Exhaust Fan
2 sets of 11KW fans
Suitable vehicle
Bus,truck
Packing & Delivery
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 8
Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans 9
standard export package
