Name: 30m Industrial Paint Booth Customizable 380V Diesel Heating For Bus Truck
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: WW-300000
Price: 24,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Spray Booths

Power: 157

External Size: 34000*6000*7000mm

Internal Size: 34000*6000*7000mm

Voltage: 380V/220V

Disc Dia.: Nm

No Load Speed: Nm

Warranty: 1year

Suitable Workpiece: Train,bus,truck,big Size Metal Piece

Size: 30m Or Other Sizes Can Be Customized

Heating Source: Diesel/gas/LPG/electricity

Door: Foldable Doors Or Rolling Doors

Basement: No, Or Pit Type

Primary Filter: Woven Bag

Ceiling Filter: F5

Floor/side Wall Filter: Fiberglass

Lighting System: LED Light

3D Lift: Optional

Highlight:

Bus Industrial Paint Booth

Truck Industrial Paint Booth

Customizable Bus Spray Booth

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WINTAI

Certification: CE

Model Number: WW-300000

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

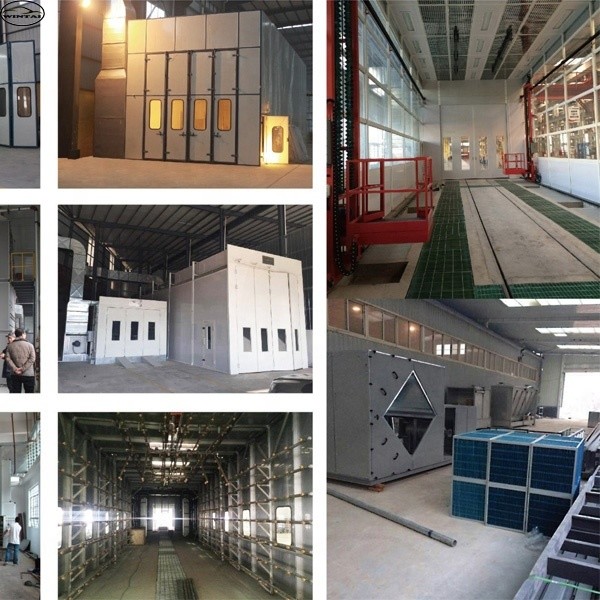

30m Industrial Paint Booth Customizable 380V Diesel Heating For Bus Truck

Product Description

30m Industrial Paint Booth Customizable 380V Diesel Heating For Bus Truck

30m Industrial Spray Paint Booth for Train Bus Truck 2024 CE Approved and Customizable

Specifications

Wallboard Construction

Thickness: 75mm
Colorful steel board: 0.476mm
EPS (expanded polystyrene) insulation: 14kg/m³
Galvanized steel roof panel

Foundation & Ventilation

Basement: dig pit or exhaust air from side wall

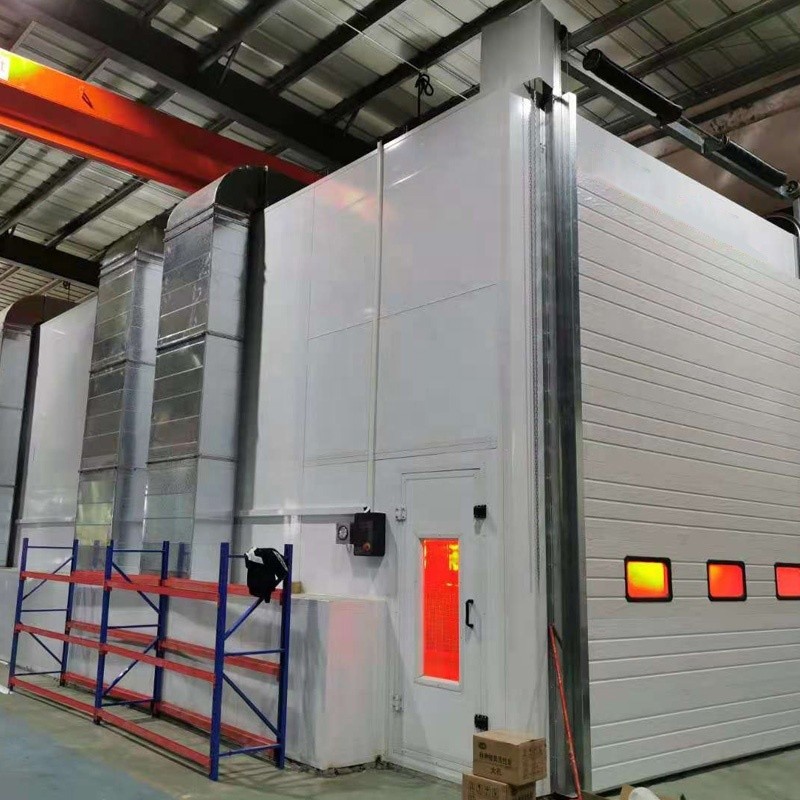

Door: Strong anti-rust ability with special rigid frame, or electric rolling door

Air Intake System (5 sets)

Each set: 2x7.5KW intake fans (total 10 units)
Full copper core construction
Air flow per set: 40,000m³/h
Total air flow: 400,000m³
5 air dampers included

Air Exhaust System (5 sets)

Each set: 1x15KW exhaust fan
Full copper core construction
Total: 5 units exhaust fans

Heating System (5 sets)

Each set: 1 unit Italy Riello RG5S diesel burner or RS5 gas burner
Total: 5 units
Heat output per unit: 260,000 kcal/h
Total heat output: 1,300,000 kcal/h
Heat Exchanger: 5 sets

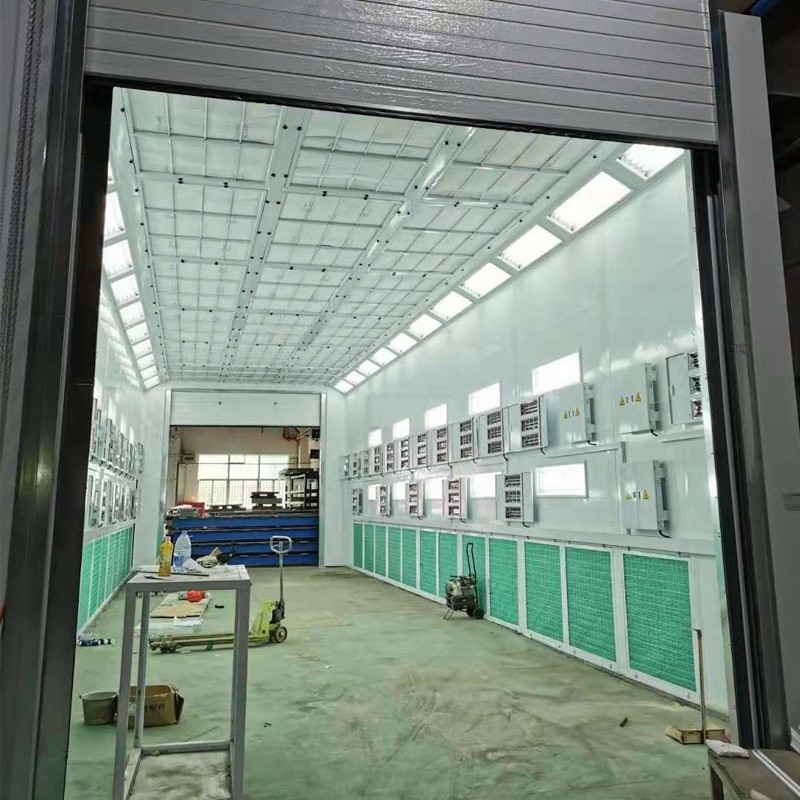

Lighting System

Ceiling lights: 40 units x 4 pcs of 18W LED lamps (160 pcs total), 900 LUX
Side lights: 44 units x 4 pcs of 18W LED lamps (176 pcs total), 900 LUX

Air Purification

Primary filter: woven cotton filter bag, G3 grade
Ceiling filter: 600g/m², F5 grade
Floor filter: fiberglass
Exhaust filter: active carbon filter bag

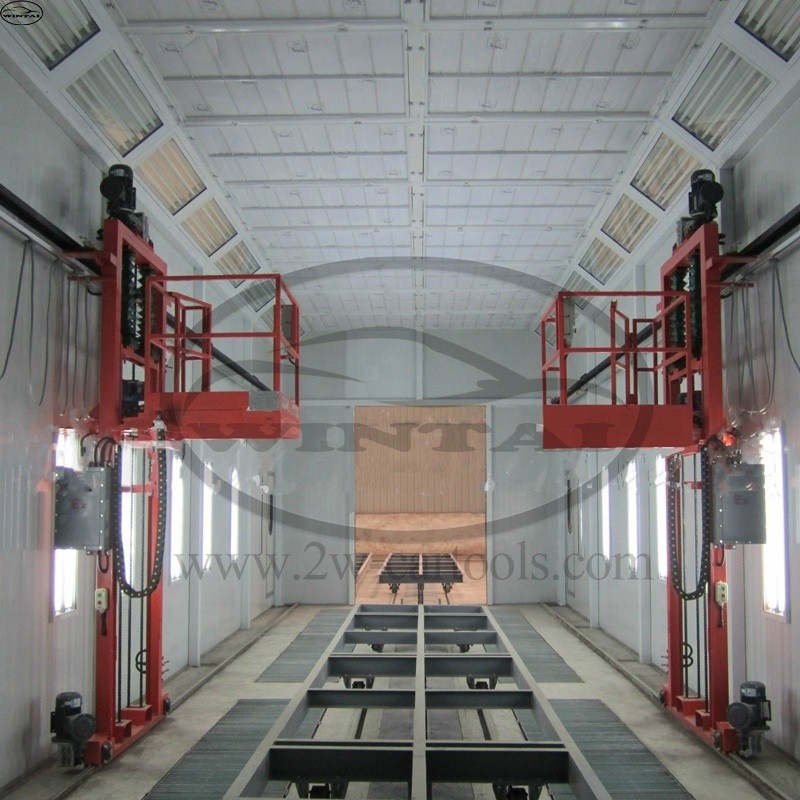

3D Lift (Optional)

3D car lift is supplementary equipment used for automobiles, trains, and other large or medium-sized work pieces. It features high rigidity, stability, rational layout, easy operation, and safe and reliable performance. It is the most ideal lifting equipment for reducing labor intensity and improving work efficiency.

Specification	Details	Performance	Details
External Size (mm)	34000 × 6000 × 7000mm (L × W × H)	Air Flow (m³/h)	40000 x 10 sets
Internal Size (mm)	34150 × 7900 × 8000mm (L × W × H)	Total Power (KW)	157KW + 10KW (for 3D lift)
Air Speed (m/s)	≥ 0.28m/s	Vehicle Suited	Train
