Name: 25m Truck Spray Booth With Rockwool Wallboard And Various No Load Speed
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: WT25000
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Spray Booths

Power: 181KW

External Size: 25.15m L*10.25m WL*5.6m H

Internal Size: 25.00m LL*7.0m WL*5.0m H

Voltage: 380V-3PH-50Hz 220V-1P-50HZ

Disc Dia.: None

No Load Speed: Various

Warranty: 12 Years

Air Flow(m³/h): 240000m³

Workpiece: Train,bus,truck Etc

Wallboard: Rockwool

Door: Fireproof Electric Rolling Door

Front Door And Rear Door: Available

Assembly Service: Available

Highlight:

25m Truck Spray Booth

Rockwool Wallboard Truck Spray Booth

Rockwool Wallboard Truck Spray Paint Booth

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WINTAI

Certification: CE

Model Number: WT25000

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000 Set/Sets per Month

Gallery

25m Truck Spray Booth With Rockwool Wallboard And Various No Load Speed

Product Description

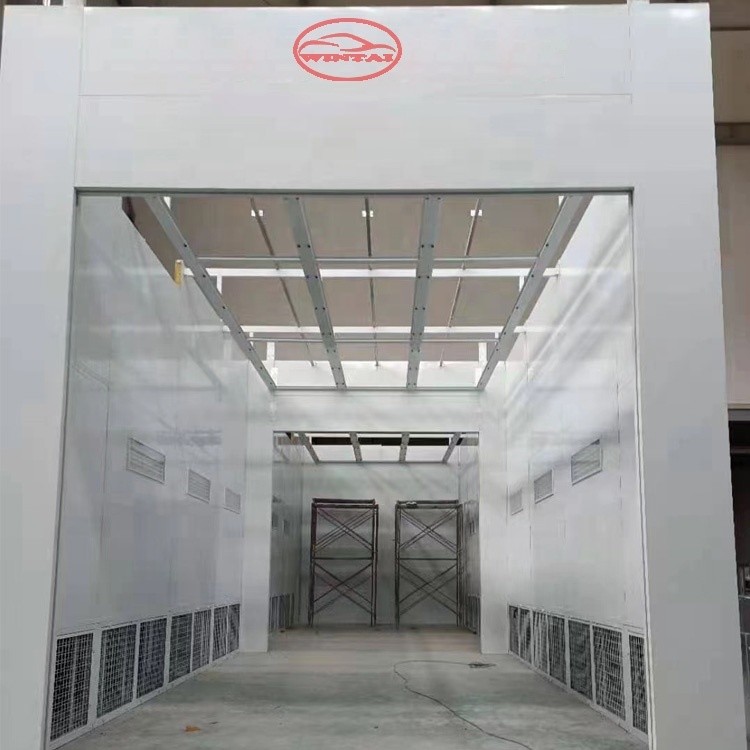

25m Train Spray Booth Painting Room with Rockwool Wallboard and Various No Load Speed

Product Description

The price is different upon different requirements.

Train spray booth industrial painting and baking room for train bus

Wallboard thickness: 75mm with edge sealColorful steel board 0.6mmRock wool inside, excellent heat
preservation performance,much better than EPS board, save diesel

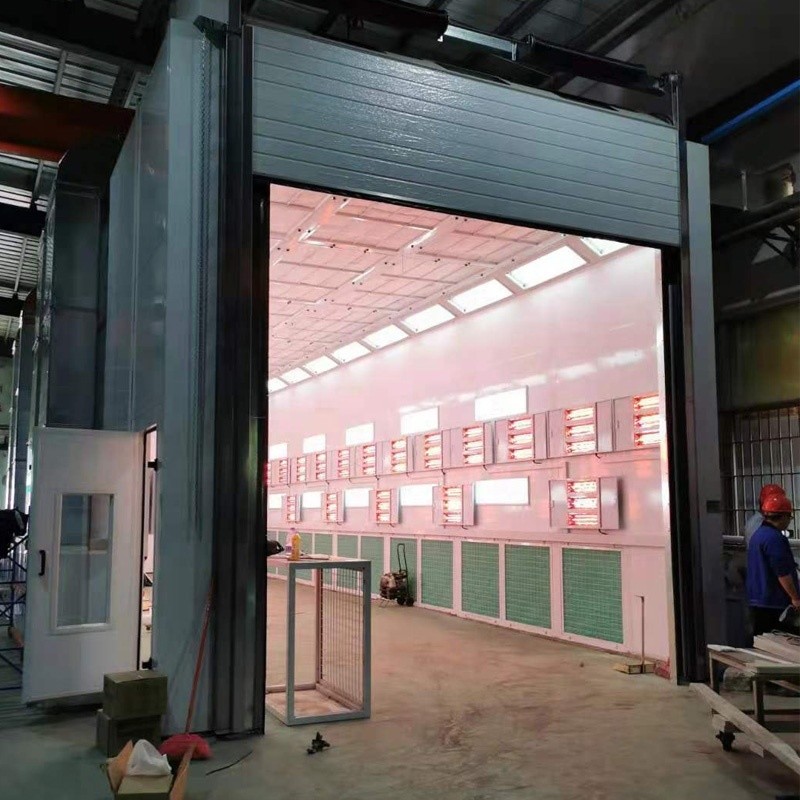

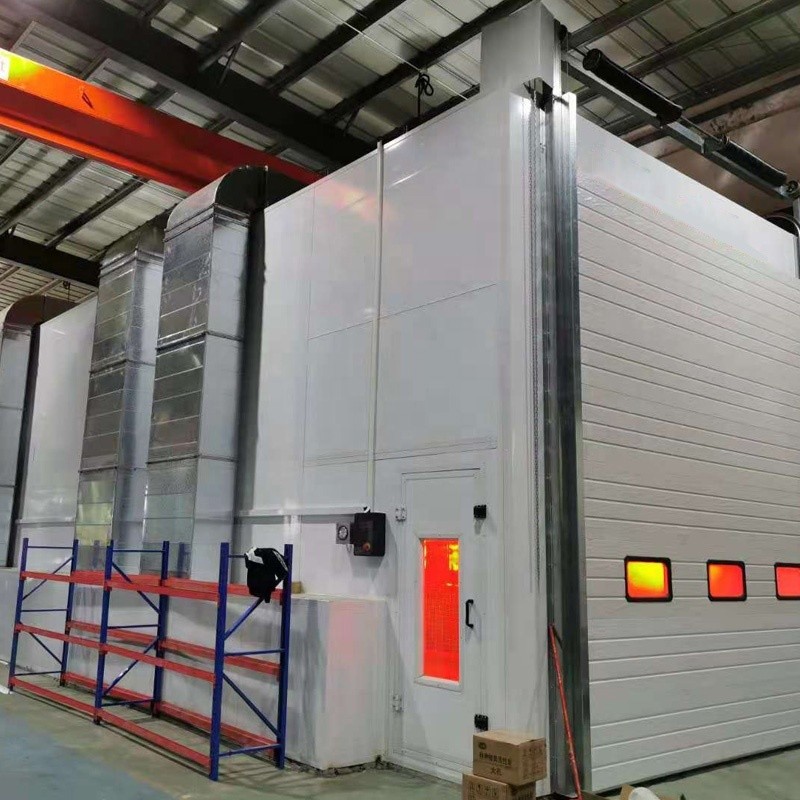

Front Door & rear door : Electric rolling door for front and rear door, fireproof grade, size:5000*4800mm, special door material with PU inside and painting on the surface. It can be controlled manually and electrically.Safety Door(2 sets)With pressure protection device on

it. When the pressure in room is too big, the door can open automatically to relieve it. Size: 2000*800MM

Waste Air Exhausted System: waste air is exhausted from side wall through fiberglass filter

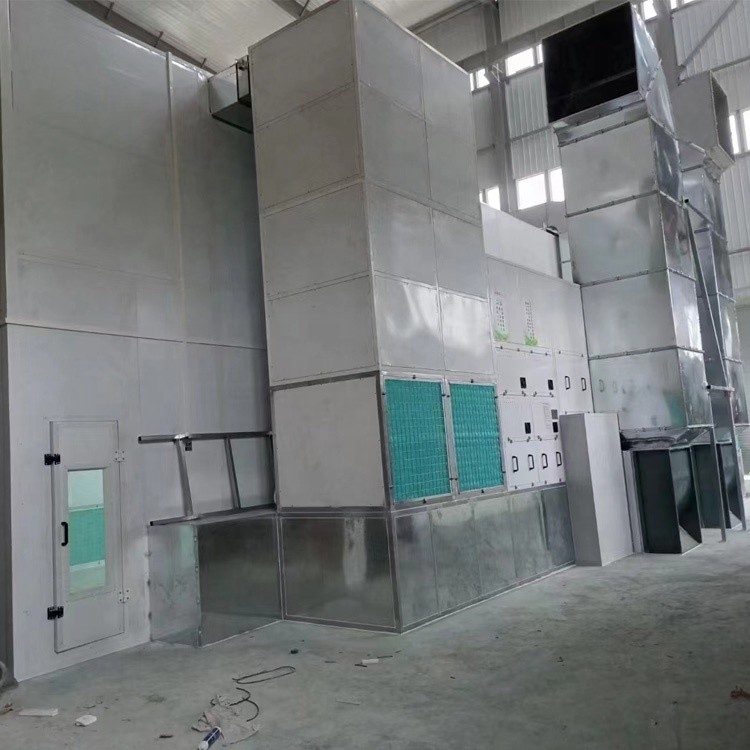

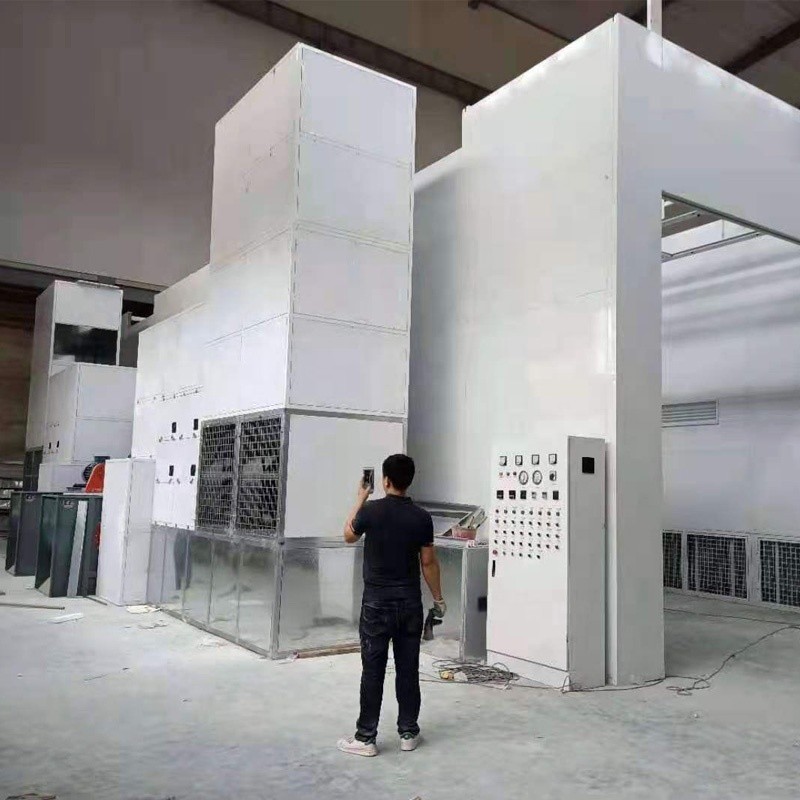

Air intake system ( 8 groups): Each group includes 1 piece of European type large impeller intake fan 11KW. The air flow is 30000m3/h. Motor is outside,easy for maintenance. Total 8 pieces of fans and 240000 m3/h of air flow

Air exhaust system(8 groups): Each group includes 1 piece of European type large impeller intake fan 11KW. The air flow is 30000m3/h. Motor is outside,easy for maintenance. Total 8 pieces of fans and 240000 m3/h of air flow

Heating System ( 8 groups): Each group includes 1 unit of Italy Riello RG5S diesel burner, Max. temperature at 80.C. 260000kcal/h/unit Total 8 units,
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

Specification

item	value
Type	Spray Booths
Power	181KW
External Size	25.15m Lⅹ10.25m Wⅹ5.6m H
Internal Size	25.00m Lⅹ7.0m Wⅹ5.0m H
Voltage	380V-3PH-50Hz 220V-1P-50HZ
Disc Dia.	None
No Load Speed	various
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WT25000
Warranty	12 years
Air Flow(m³/h)	240000m³
Workpiece	train,bus,truck etc
wallboard	rockwool
door	fireproof electric rolling door
front door and rear door	available
assembly service	available

Packing & Delivery

Tag:

Contact Person :	Xiang Wen
Tel :	0086-18774648113
Fax :	86-10-2032781931-31
