Features

Specifications

Type: Spray Booths

Power: 44KW

External Size: 15150*6700*5000mm

Internal Size: 15000*5000*4550mm

Voltage: 110V/220V/ 380V

Disc Dia.: NM

No Load Speed: NM

Warranty: 12 Months

Color: Red,orange,white,blue

Heating Source: Diesel,gas,LPG,electricity

Suitable Workpiece: Bus,truck,train,plane,steel,furniture

Intake Fan: 2sets Of 11KW Fans

Exhaust Fan: 2sets Of 7.5KW Fans

Light: LED

Basement: Pits Or No Basement

Ceiling Filter: F5/EU5/600G

Floor Filter: Fiberglass

Exhaust Filter: Fiberglass

Port: Guangzhou/Shenzhen

Highlight:

LED Bus Spray Paint Booth

Outdoor Bus Spray Paint Booth

7.5KW Exhaust Fans Truck Paint Booth

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: wintai

Certification: CE

Model Number: NM

Payment & Shipping Terms

Packaging Details: standard export package

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000 Set/Sets per Month

Gallery

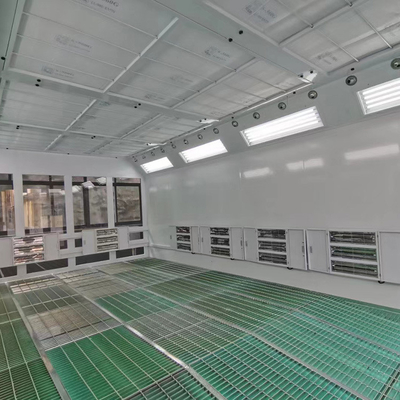

Outdoor LED Industrial Bus Spray Paint Booth With 2 Sets Of 7.5KW Exhaust Fans

Product Description

CE Industrial truck bus spray painting booth with diesel burner Outdoor spray oven

Specification

CE approved large size Bus truck Spray Booth/ Bus Painting Room

Wallboard: Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional ) 75mm thickness; EPS foam Density is 14kg/m³. The Colorful steel skin boards have been HDG(hot dip galvanizing). High quality galvanized steel roof panel.

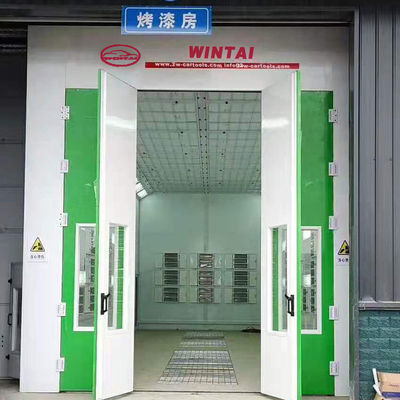

Door: 4 pcs of front doors with aluminum bordure. Size: 4000*5000(mm)(W*H). 2 pc of emergency doors 650*1800mm(W*H)/pc.
Intake Fan(2groups): 1 set of 11kw intake fan/per group, total 2 units of 11kw intake fans. BELIMO 20N electric damper. S.iemens technology production, large air volume and low noise. Air flow:60,000m3/h.
Exhaust Fan(2rgoups):1 set of 11kw exhaust fan/per group, total 2sets of 11kw exhaust fans, Air flow:60,000m3/h.
Filtering: Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture
granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%.
Burner: Original Italy RIELLO RG5S diesel burner, 260,000Kcal/h per unit, total 2 units of burners and 520,000Kcal/h. Max
temperature at 80°C.

Heat Exchanger(2sets): it’s made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.
LED Lighting System: Ceiling lights have 18units×4pieces of 18w LED lamps. Side light has 22units×2pieces of 18kw LED lamps. Total 116pieces of 18w LED lamps. 900 Lux.

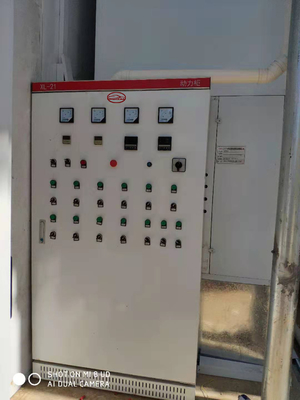

Control System: Microcomputer control system. Cabinet type, easy to control and maintain.

Remark:
Any sizes can be customized;
3D lift is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.

item	value
Type	Spray Booths
Power	44KW
External Size	1515067005000mm
Internal Size	1500050004550mm
Voltage	110V/220V/ 380V
Disc Dia.	NM
No Load Speed	NM
Place of Origin	China
	Guangdong
Brand Name	wintai
Model Number	NM
Warranty	12 months
Color	red,orange,white,blue
Heating source	diesel,gas,LPG,electricity
Suitable workpiece	bus,truck,train,plane,steel,furniture
Intake Fan	2sets of 11KW fans
Exhaust Fan	2sets of 7.5KW fans
Light	LED
Basement	pits or no basement
ceiling filter	F5/EU5/600G
Floor Filter	Fiberglass
Exhaust Filter	Fiberglass

Packing & Delivery

standard export package
