Home /Products/Touchless Car Washer/Metal Frame Fully Automatic Touchless Car Wash Machine WT360 150L Water Consumption

Metal Frame Fully Automatic Touchless Car Wash Machine WT360 150L Water Consumption

1
MOQ
$15,000.00/acres >=1 acres
Price
Metal Frame Fully Automatic Touchless Car Wash Machine WT360 150L Water Consumption
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Other
Color: Blue
Material: Metal
Machine Size(mm): 7000*3100*3300
Mininum Installation Area Size(mm): 7000*3300*3200
Max Vehicle Suitable(mm): 5500*2200*2000
Track Length(mm): 6000
Voltage: 380v/3phase/50HZ/16kw Or Other Voltage
Power Consumption: 0.21kwh/Car
Water Consumption: 150L/Car
Time: 3min/time
High Pressure Nozzle: 31Pieces
Warranty: 1 Year
Port: Guangzhou
Highlight:

Metal Frame Touchless Car Wash Machine

,

150L Touchless Car Wash Machine

,

Metal Frame Fully Automatic Car Wash
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WinTai
Certification: CE
Model Number: WT-360
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Acre/Acres per Month
Product Description
Metal Frame Fully Automatic Touchless Car Wash Machine WT360
Advanced touchless car wash system with 150L water consumption and 3-minute cycle time per vehicle.

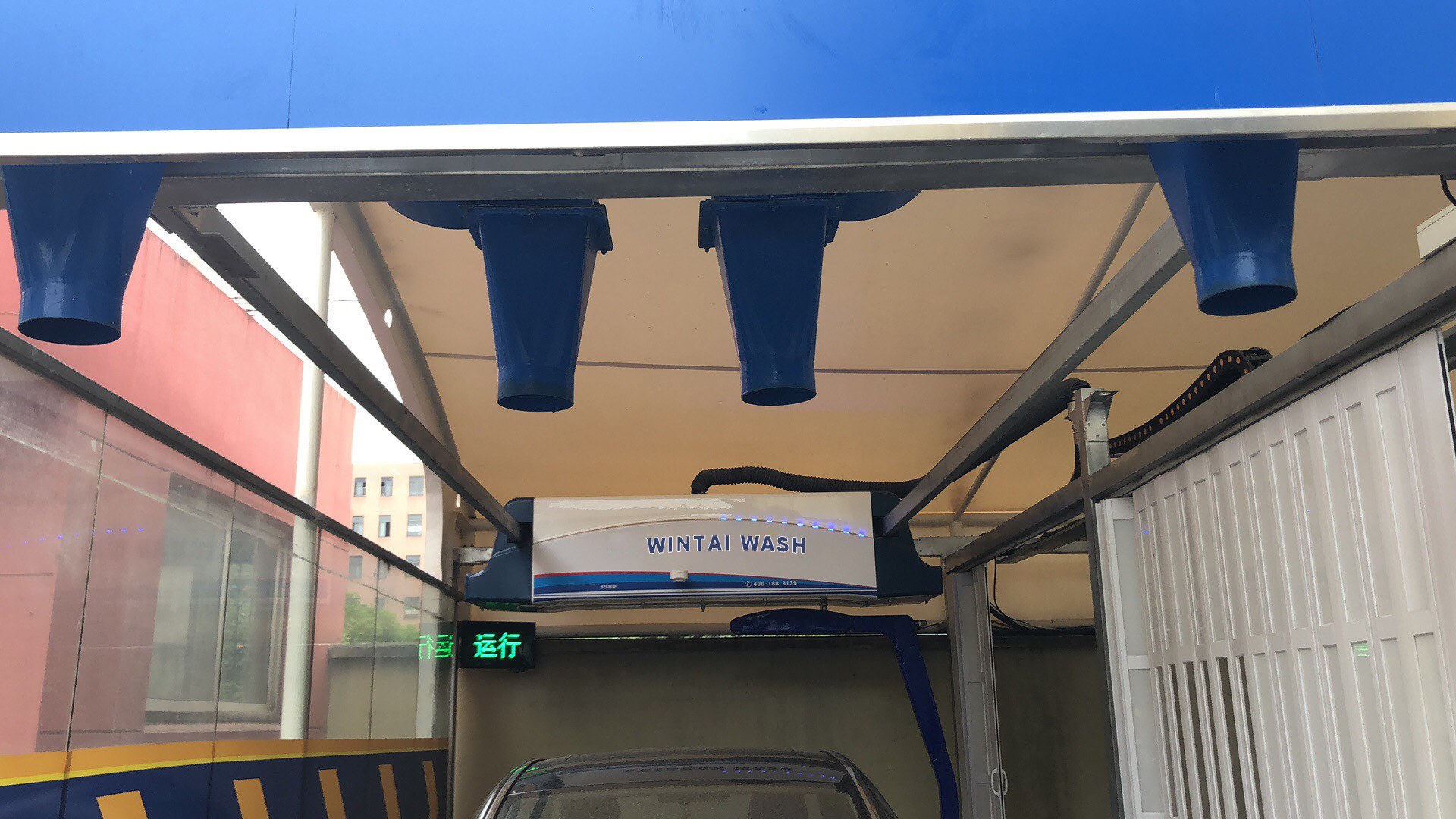

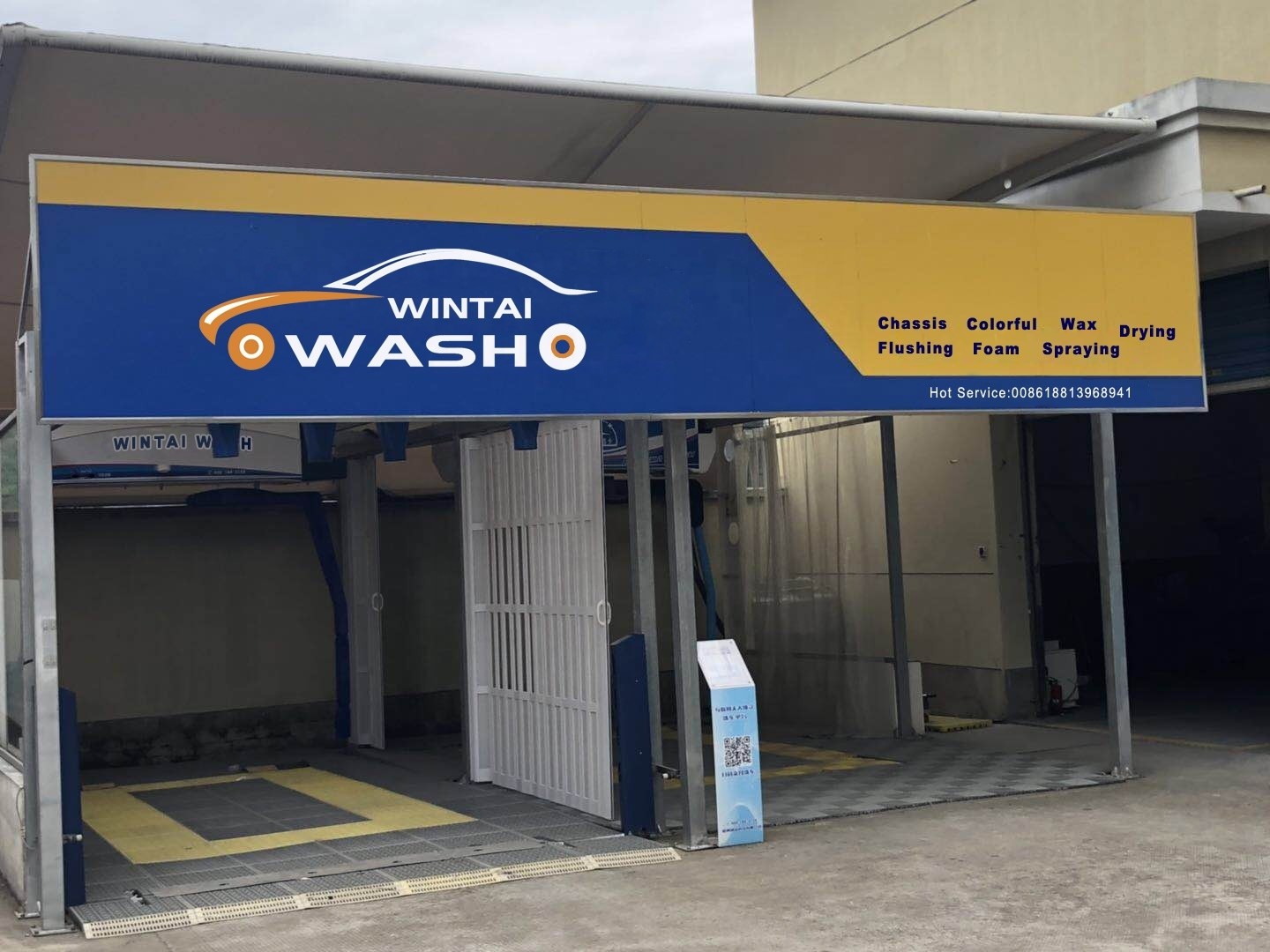

WT360 Fully Automatic Touchless Car Wash Machine overview
Key Features
  • Ultrasonic induction automatically detects vehicle distance to prevent collisions
  • High-pressure flushing at 70KG+ ensures thorough cleaning while conserving energy and water
  • Automatic foam spray system for even decontamination and detergent efficiency
  • Automatic chassis inductive flushing for complete undercarriage cleaning
  • Electronic touch screen control with fault self-test and counting functions
System Functions
Chassis flushing Yes Car Body Size Detecting Yes
Wheel rims flushing Yes Wax Spraying Yes
Shampoo spraying Yes One Button Reset Yes
High pressure water flushing for car body Yes One Button Start Yes
Car washing counting Yes Fault detecting function Yes
Alarm Prompt Yes External Support Frame Yes
Automatic Chemical Matching System Yes LED light Yes
Movable built-in dryers Yes - dry car body more quickly, 1.5KW/pc, 4pcs total
Technical Configuration
Control System (PLC) Siemens PLC Driving System Mechanical wheel + gear wheel
Electric Components Schneider Bearing NSK
Safety detecting system BANNER Rotary Nozzle Nitto
Water Pump Italy brand High Pressure Nozzle Lecheler
Sensor Schneider Frame 1 set
Drive Motor Water-proof Inverter motor Foam Nozzle GQ316L

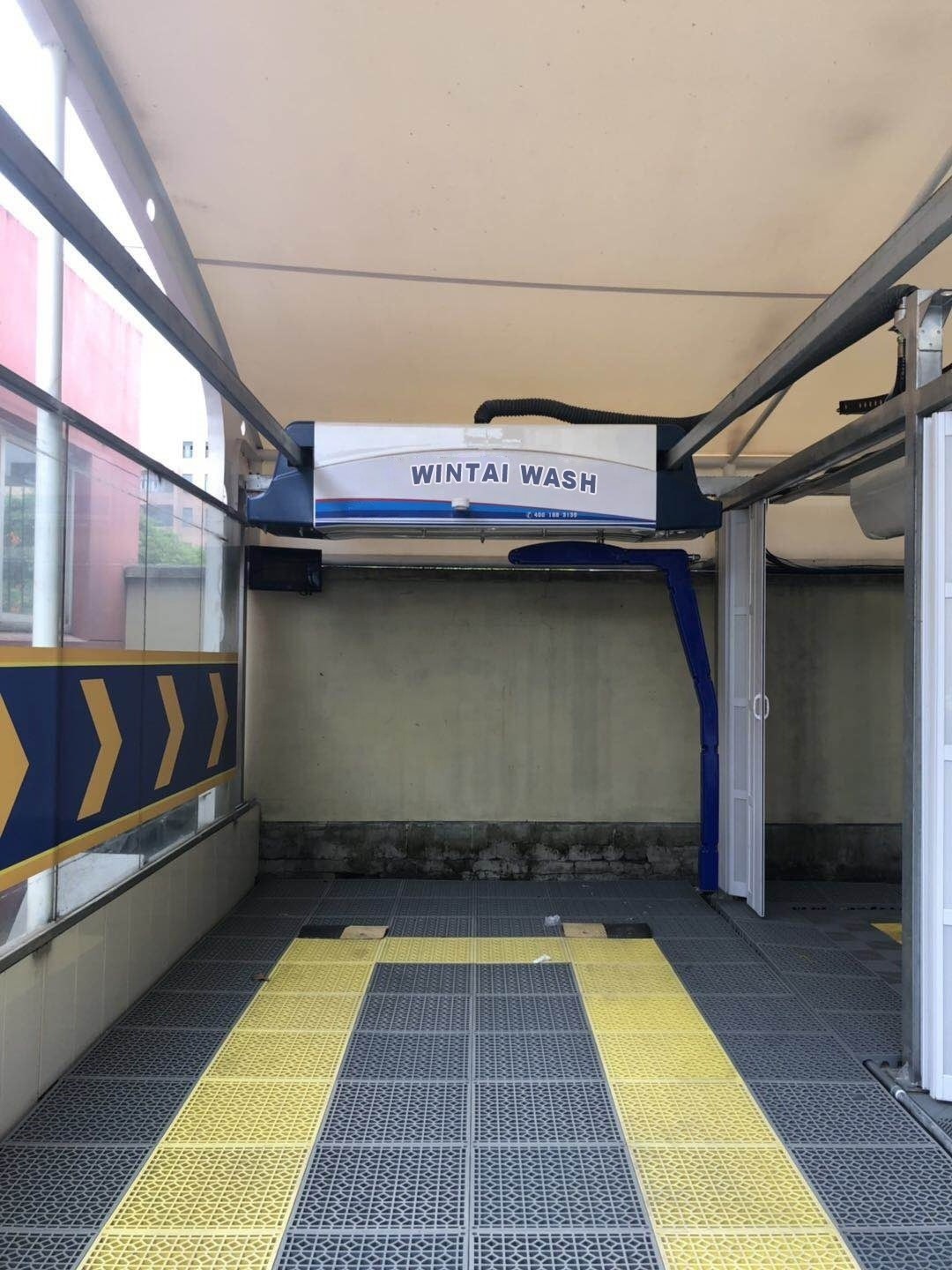

WT360 Car Wash Machine detailed view

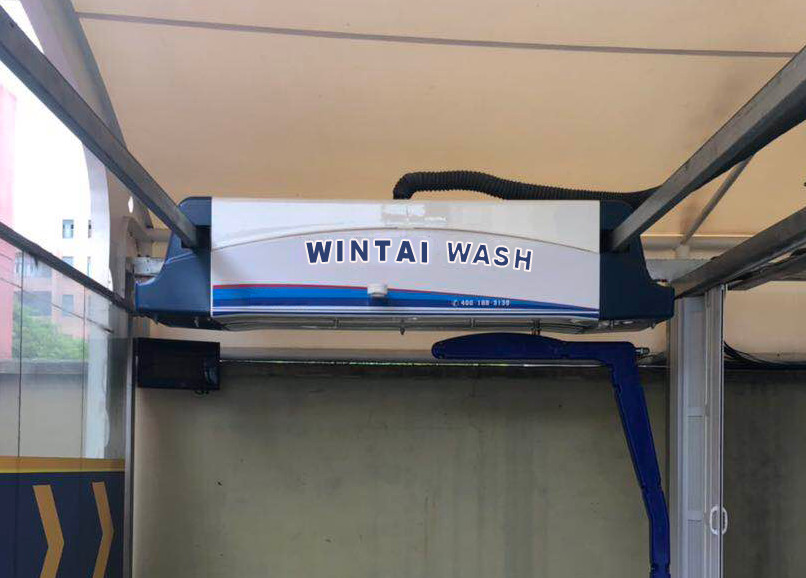

WT360 Car Wash Machine operation view
Performance Specifications: 150L Water Consumption | 3-Minute Cycle Time | Fully Automatic Touchless Operation
Tag:

Touchless Automatic Car Wash

Touch Free Automatic Car Wash

Car Wash Touchless Machine
