Home /Products/Touchless Car Washer/Max Vehicle Size 5500*2200*2000mm Touchless Car Washer with Ground Flushing System

Max Vehicle Size 5500*2200*2000mm Touchless Car Washer with Ground Flushing System

$15,000.00/sets 1-1 sets
Price
Max Vehicle Size 5500*2200*2000mm Touchless Car Washer with Ground Flushing System
Features Gallery Product Description Request A Quote
Features
Specifications
Size: 5500*2200*2000
Material: NM
Warranty: 1 Year
Output Power: >1500W
Design Style: New China-Chic
Machine Size(mm): 7000*3100*3300
Mininum Installation Area Size(mm): 7000*3300*3200
Max Vehicle Suitable(mm): 5500*2200*2000
Track Length(mm): 6000
Washing Car Type: Normal And Commercial Vehicles, Medium-sized SUV
Ground Flushing System: 1 Set
High Pressure Nozzle: 31Pieces
Washing Speed: 20cars/hour
Time: 3min/time
Highlight:

Touchless Car Washer

,

Ground Flushing System Touchless Car Washer
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Wintai
Model Number: WT360
Payment & Shipping Terms
Packaging Details: Standard Export Packages
Supply Ability: 1000 Set/Sets per Month
Product Description
Max Vehicle Size 5500×2200×2000mm Touchless Car Washer with Ground Flushing System
Economic Touchless Automatic Car Washing Machine (WT360, Update Version of WT180)

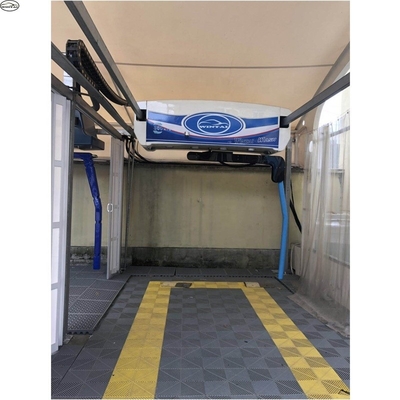

WT360 Touchless Automatic Car Washing Machine
Key Features
  • Ultrasonic induction automatically detects vehicle distance to prevent collisions, ensuring safer operation
  • No blind spot high-pressure flushing reaches 70KG or more, maintaining pressure while conserving energy and water
  • Automatic foam spray system for even and efficient decontamination, reducing detergent usage
  • Automatic chassis inductive flushing addresses areas inaccessible during manual washing
  • Electronic touch screen control box with clear washing programs, fault self-test, and counting functions
Technical Specifications
Machine Size (mm) 7000×3100×3300 Voltage 380v/3phase/50HZ/16kw or other voltage
Minimum Installation Area (mm) 7000×3300×3200 Power Consumption 0.21kwh/Car
Max Vehicle Size (mm) 5500×2200×2000 Water Consumption 150L/Car
Track Length (mm) 6000 Time per Wash 3 minutes
Washing Car Type Normal and commercial vehicles, medium-sized SUV Speed 20 cars/hour
Ground Flushing System 1 set High Pressure Nozzles 31 pieces
Functional Capabilities
Chassis Flushing Yes Car Body Size Detecting Yes
Wheel Rims Flushing Yes Wax Spraying Yes
Shampoo Spraying Yes One Button Reset Yes
High Pressure Water Flushing Yes One Button Start Yes
Car Washing Counting Yes Fault Detecting Function Yes
Alarm Prompt Yes External Support Frame Yes
Automatic Chemical Matching Yes LED Light Yes
Movable Built-in Dryers Yes (4 pieces total, 1.5KW each, dries car body more quickly)
System Configuration
Control System (PLC) Siemens PLC Driving System Mechanical wheel + gear wheel
Electric Components Schneider Bearing NSK
Safety Detecting System BANNER Rotary Nozzle Nitto
Water Pump Italy brand High Pressure Nozzle Lecheler
Sensor Schneider Frame 1 set
Drive Motor Water-proof Inverter Motor Foam Nozzle GQ316L

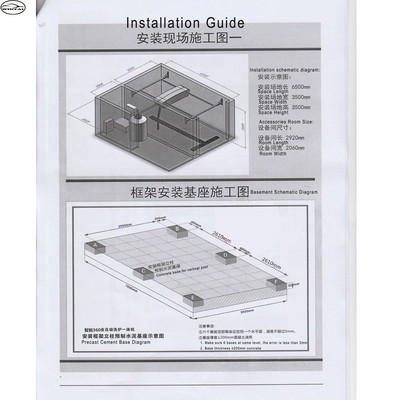

WT360 Car Washer Technical Diagram
