Features

Specifications

Size: 3670mm*1330mm*1300mm

Material: NM

Warranty: 1

Output Power: >1500W

Design Style: New China-Chic

Model Number: T9

Max Vehicle Suitable: 6000*2500*2080mm

Water Consumption: 65-200L/car

Electricity Consumption: 0.4-1KW.H/car

Total Weight/volume: ≥3300kgs/≥8.5m

Waste Water Recycling System: Optional

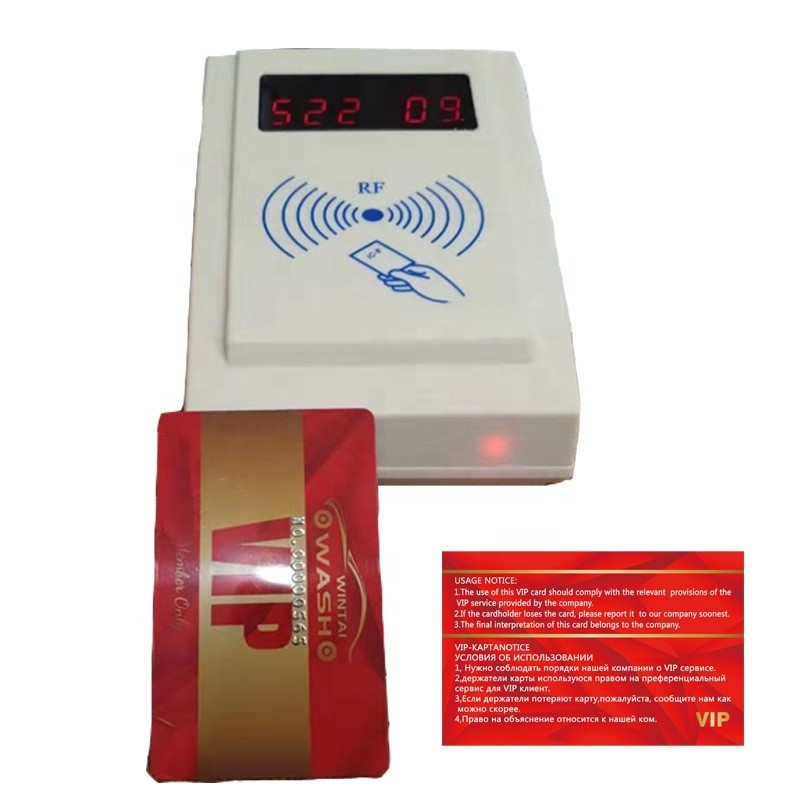

Self-service Payment System: Optional

Installation Service: Optional

Type: Touch Free Type

Highlight:

Automatic Laserwash Car Washing Machine

Touchless Laserwash Car Washing Machine

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WinTai

Model Number: T9

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

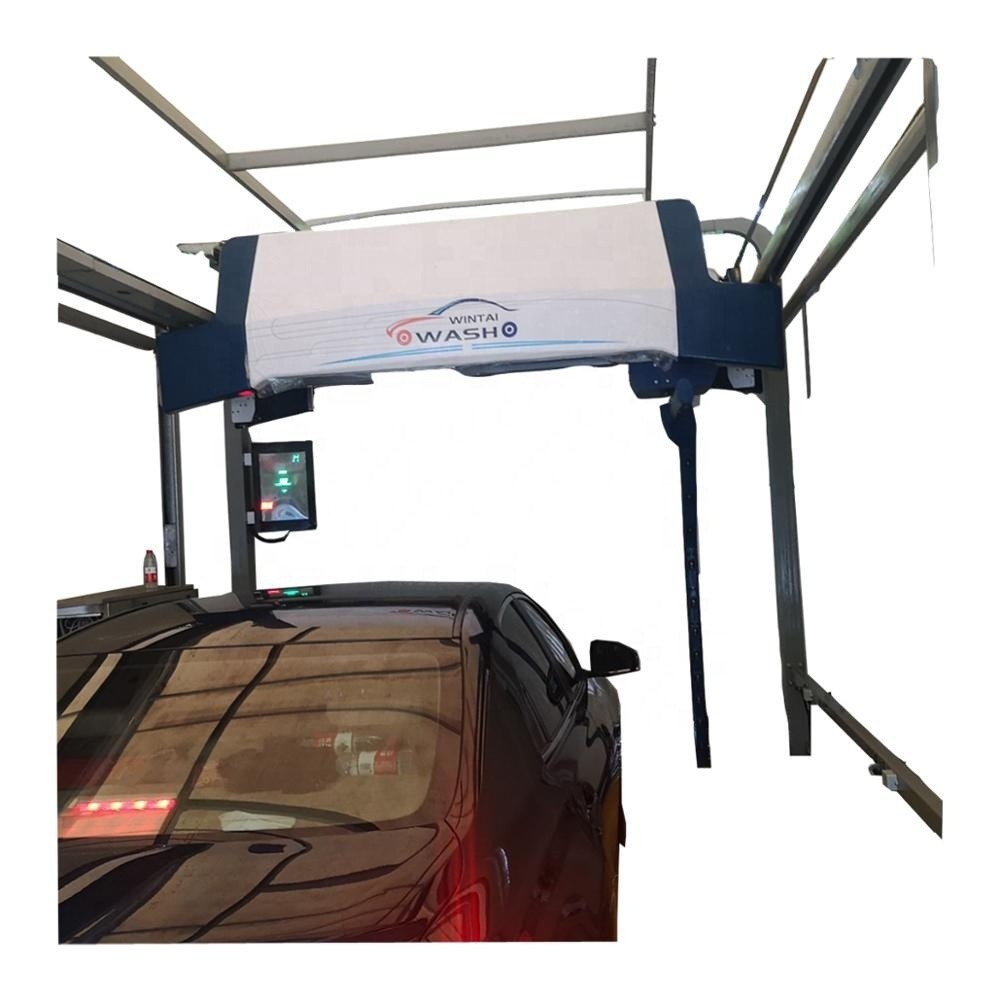

Touchless Automatic Laserwash Car Washing Machine with NM and 65-200L Water Consumption

Product Description

Touchless Automatic Laserwash Car Washing Machine

This touch-free car washing machine is designed for hassle-free operation and business efficiency. Built with high-quality components for minimal maintenance requirements. Total weight: 2.8 tons with 11 cubic meters volume.

Touch free car washing machine Self-service car washing machine Touchless car washing machine Brushless car washing machine

Special Features

Automatic chemical consumption adjustment via touch screen based on vehicle dirt level

Washing Modes

Fine Mode (5 minutes/car): Start → Chassis/wheel rim flushing → Colorful high foam detergent spraying → High pressure car body flushing → Shampoo spraying → High pressure car body flushing → Wax spraying → Drying → End
Fast Mode (2 minutes/car): Start → Chassis/wheel rim flushing → Colorful high foam detergent spraying → High pressure car body flushing → Drying → End

Technical Specifications

Item	Parameters	Function	Remark
Machine Size (LWH)	3670mm1330mm1300mm	Self-parking and detecting system	√
Pump Size (LWH)	1280mm740mm600mm	Digital anti-collision system	√
Chemical station size (LWH)	1160mm470mm1350mm	All degree rotary high pressure flushing	√
Max Vehicle Suitable	600025002080mm	Chassis flushing	√
Installation (L)-Frame Length	7500mm~8000mm	Detergent spraying	√
Installation (W)	3350mm~3686mm	Colorful/high foam detergent spraying	√
Installation (H)	3300mm-3400mm	Wax spraying system	√
Total Weight/volume	≥3300kgs/≥8.5m³	Built-in automatic drying system	√
Power Requirement	380V/25KW or other voltage	LED indication light guide system	√
Air Switch	100A	Operation permission setting function	√
Total Power	13KW/24.5KW	Self-service payment system	√
Water Pump Motor Power	18.5KW/pressure 100Bar, 100-100 Bar Adjustable, Simens	Voice Prompts function	√
Fan Motor Power	5.5KW/set x4sets	Car washing counting function	√
Horizontal Motor Power	0.55KW asynchronous frequency conversion speed regulation	Antifreeze system	√
Cross Motor Power	1KW digital servo motor	Oil-free system	√
Rotation motor Power	1KW digital servo motor	Equal pressure anti-blocking nozzle	√
Chemical Proportion Motor Power	0.37KW	Safe alarm system	√
Central Processing unit PLC	Industrial intelligent digital control system	Automatic Standby function	√
Drive system	Variable frequency speed control+digital servo driver
Inspection system	Intelligent three-dimensional detection system
Running speed	27 seconds/360 degree one circle	Self-service payment system	.
Water consumption	65-200L/car	Colorful Lights	.
Electricity consumption	0.4-1KW.H/car	Water Recycle System	.
