Features

Specifications

Size: 3670mm*1330mm*1300mm

Material: 304 Steel

Warranty: 3

Output Power: >1500W

Max Vehicle Suitable: 6000*2500*2080mm

Water Consumption: 65-200L/car

Electricity Consumption: 0.4-1KW.H/car

High Pressure: 130bar

Total Power: 13KW/24.5KW

Highlight:

3670mm Automatic Car Wash Machine

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WinTai

Model Number: T9

Payment & Shipping Terms

Gallery

High Pressure TFully Automatic Car Wash System Touch Free Car Wash Machine with single arm Reverse Osmosis Water Machine

Product Description

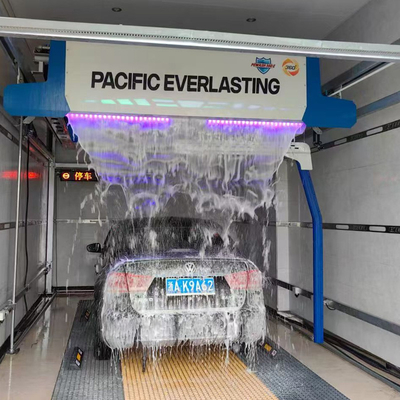

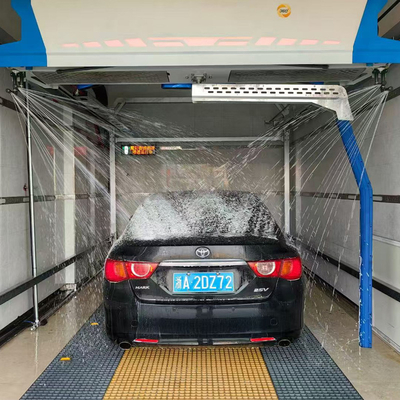

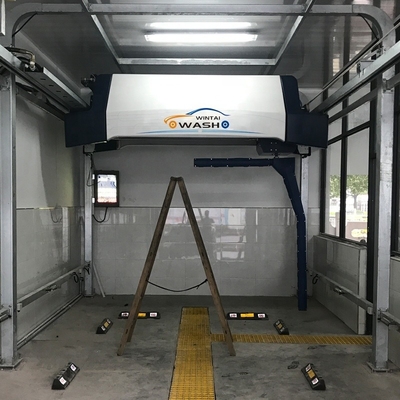

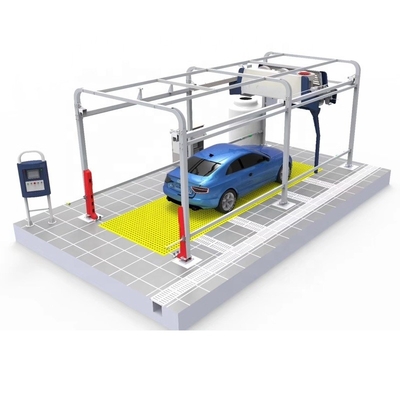

High Pressure Fully Automatic Car Wash System - Touch Free Car Wash Machine with Single Arm & Reverse Osmosis Water Machine

High Pressure Brushless Automatic Car Wash Machine

Design Features

Beautiful streamlined design combining mechanical excellence with practical functionality
Smooth overall structure with optimized walking trolley design for stable and safe operation
Premium material selection balancing firmness, lightness, simplicity, and durability

Built-in 360° Rotating Arms

CAE computer-aided simulation design for optimal nozzle placement and angle to prevent water hedging
Intelligent distance calculation with safety and collision prevention features
Equal pressure, equal distance, and uniform speed washing methodology
Complete 360° coverage for high-pressure pre-wash, shampoo application, wax coating, and final drying

Built-in Silent Drying Blower

Integrated drying blower with elegant appearance and compact structure
Space-saving design with blower moving along equipment trolley for mobile drying
Excellent blower performance for efficient drying results

Manufacturing Excellence

Laser pipe cutting machine for high-precision tube and frame cutting
Laser board cutting machine for high-precision steel board cutting
CNC bending machine for seamless frame bending without welding points

Hot-Dip Galvanized Frame Construction

Laser high-precision cutting, CNC bending, and 304 stainless steel high-strength screw fixation
Superior operational precision compared to welded frames for enhanced stability and safety
Q235 international standard profile steel with 4mm thickness
Surface treatment: pickling, phosphating, and hot-dip galvanizing
SGS salt spray test grade report: Grade 10

Special Features

Automatic chemical consumption setting via touch screen based on vehicle dirt level

Washing Modes

Fine Mode (5 minutes/car):
Start → Chassis/Wheel Rim Flushing → Colorful High Foam Detergent Spraying → High Pressure Car Body Flushing → Shampoo Spraying → High Pressure Car Body Flushing → Wax Spraying → Drying → End

Fast Mode (2 minutes/car):
Start → Chassis/Wheel Rim Flushing → Colorful High Foam Detergent Spraying → High Pressure Car Body Flushing → Drying → End

Technical Specifications

Item	Parameters	Function	Remark
Machine Size (L×W×H)	3670mm × 1330mm × 1300mm	Self-parking and detecting system	√
Pump Size (L×W×H)	1280mm × 740mm × 600mm	Digital anti-collision system	√
Chemical Station Size (L×W×H)	1160mm × 470mm × 1350mm	All degree rotary high pressure flushing	√
Max Vehicle Suitable	6000 × 2500 × 2080mm	Chassis flushing	√
Installation (L) - Frame Length	7500mm ~ 8000mm	Detergent spraying	√
Installation (W)	3350mm ~ 3686mm	Colorful/high foam detergent spraying	√
Installation (H)	3300mm - 3400mm	Wax spraying system	√
Total Weight/Volume	≥3300kgs / ≥8.5m³	Built-in automatic drying system	√
Power Requirement	380V/25KW or other voltage	LED indication light guide system	√
Air Switch	100A	Operation permission setting function	√
Total Power	13KW/24.5KW	Self-service payment system	√

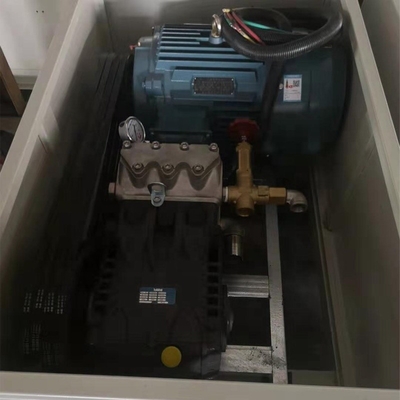

Water Pump Motor Power	18.5KW/pressure 100Bar, 100-100 Bar Adjustable, Siemens	Voice Prompts function	√
Fan Motor Power	5.5KW/set × 4 sets	Car washing counting function	√
Horizontal Motor Power	0.55KW asynchronous frequency conversion speed regulation	Antifreeze system	√
Cross Motor Power	1KW digital servo motor	Oil-free system	√
Rotation Motor Power	1KW digital servo motor	Equal pressure anti-blocking nozzle	√
Chemical Proportion Motor Power	0.37KW	Safe alarm system	√
Central Processing Unit PLC	Industrial intelligent digital control system	Automatic Standby function	√
Drive System	Variable frequency speed control + digital servo driver
Inspection System	Intelligent three-dimensional detection system
Running Speed	27 seconds/360° one circle	Self-service payment system	Optional
Water Consumption	65-200L/car	Colorful Lights	Optional
Electricity Consumption	0.4-1KW.H/car	Water Recycle System	Optional
