Home /Products/Touchless Car Washer/T9 Fully Automatic Contactless Car Washing System with Output Power 1500W

T9 Fully Automatic Contactless Car Washing System with Output Power 1500W

$26,800.00/sets >=1 sets
Price
T9 Fully Automatic Contactless Car Washing System with Output Power 1500W
Features Gallery Product Description Request A Quote
Features
Specifications
Size: 3670*1330*1300mm
Material: NM
Warranty: 1
Output Power: >1500W
Design Style: New China-Chic
Model: T9
Max Vehicle Suitable: 6000*2500*2080mm
Water Consumption: 65-200L/car
Electricity Consumption: 0.4-1KW.H/car
Total Weight/volume: ≥3300kgs/≥8.5m

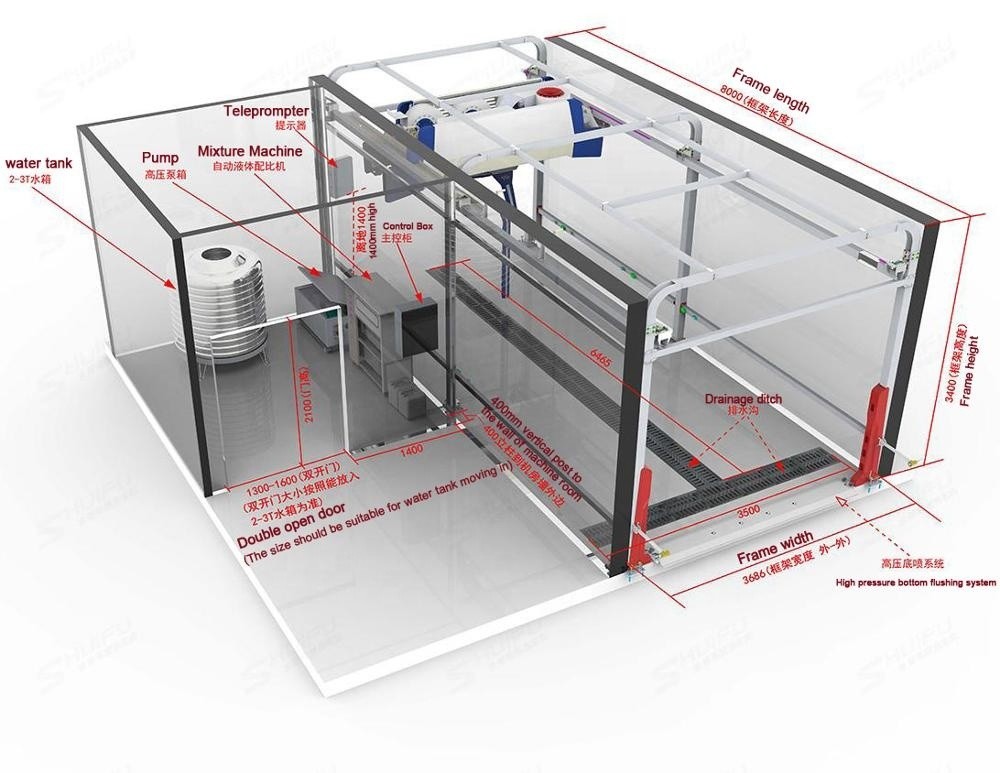

Installation(L)-Frame Length: 7500mm~8000mm
Installation(W): 3350mm~3686mm
Installation(H): 3300mm-3400mm
Air Switch: 100A
Total Power: 13KW/24.5KW
Port: Shenzhen/Guangzhou
Highlight:

Contactless Car Washing System

,

Fully Automatic Contactless Car Washing System
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WinTai
Model Number: T9
Payment & Shipping Terms
Packaging Details: Standard Export Packages
Supply Ability: 1000 Set/Sets per Month
Product Description

T9 Fully Automatic Touchless Car Washing System



T9 Fully Automatic Contactless Car Washing System with Output Power 1500W 0

Model Number  T9
Machine Name  Touchless Fully Automatic Car Washing Machine
Machine Size  3670mm*1330mm*1300mm

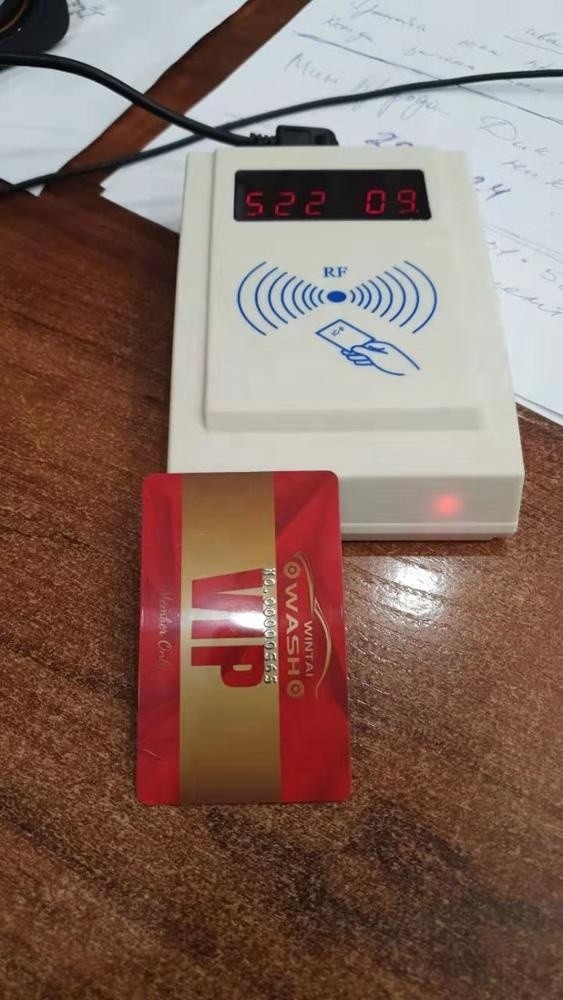

Payment System  IC Cards

Special Feature:

Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.

Wasing Mode:

1.Fine Mode (5 minutes/car):  start--chassis/wheel rim flushing--Colorful

high foam detergent spraying--High Pressure Car Body Flushing--

2.Low foam detergent spraying--High pressure car body flushing--Wax

  Spraying--Wax Rain--Drying

3.Fast Mode (2 minutes/car):  start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--

4.Wax Spraying--Wax Rain--Drying

Item Parameters Function Remark
Machine Size(L*W*H) 3670mm*1330mm*1300mm Self-parking and detecting system √
Pump Size(L*W*H) 1280mm*740mm*600mm Digital anti-collision system  √
Chemical station size(L*W*H) 1160mm*470mm*1350mm All degree rotary high pressure flushing √
Max Vehicle Suitable 6000*2500*2080mm Chassis flushing √
Installation(L)-Frame Length 7500mm~8000mm Detergent spraying √
Installation(W) 3350mm~3686mm Colorful/high foam detergent spraying √
Installation(H) 3300mm-3400mm Wax spraying system √
Total Weight/volume ≥3300kgs/≥8.5m³ Built-in automatic drying system √
Power Requirement 380V/25KW or other voltage LED indication light guide system √
Air Switch 100A Operation permission setting function √
Total Power 13KW/24.5KW Self-service payment system √
Water Pump Motor Power 18.5KW/pressure 100Bar,100-100 Bar Adjustable,Simens  Voice Prompts function √
Fan Motor Power 5.5KW/set x4sets  Car washing counting function √
Horizontal Motor Power 0.55KW asynchronous frequency conversion speed regulation Antifreeze system √
Cross Motor Power 1KW digital servo motor  Oil-free system √
Rotation motor Power 1KW digital servo motor  Equal pressure anti-blocking nozzle √
Chemical Proportion Motor Power 0.37KW Safe alarm system √
Central Processing unit PLC Industrial intelligent digital control system Automatic Standby function √
Drive system variable frequency speed control+digital servo driver
Inspection system Intelligent three-dimensional detection system
Running speed 27 seconds/360 degree one circle

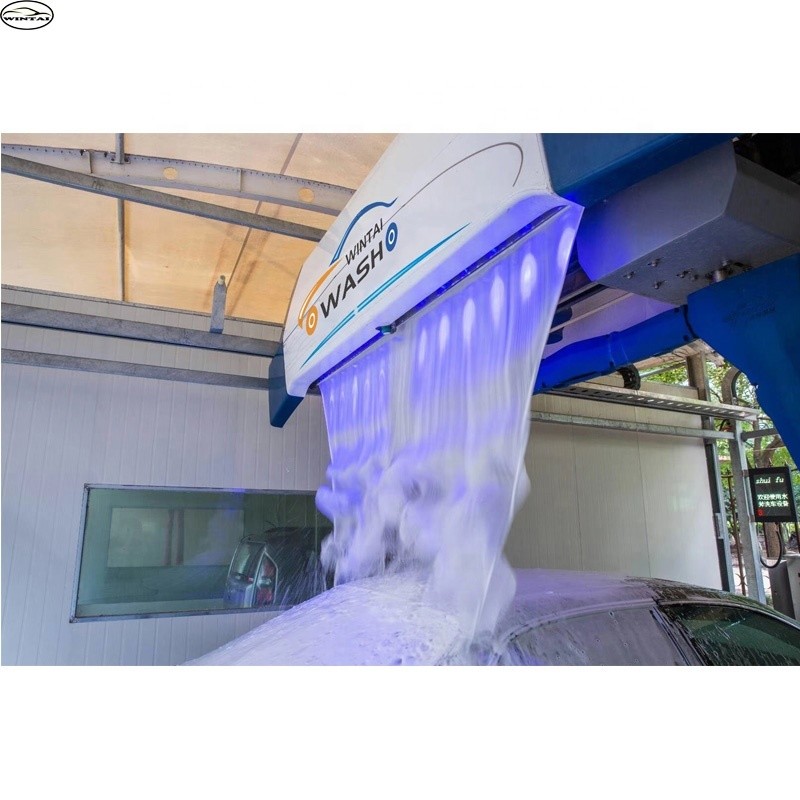

Water consumption 65-200L/car Colorful Lights(like above right picture) .

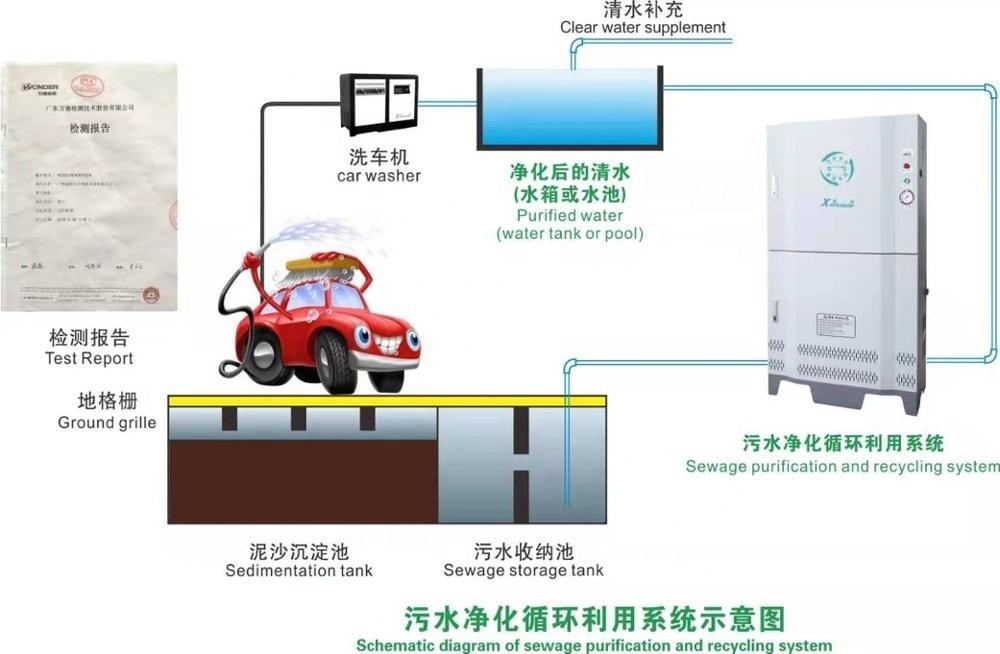

Electricity consumption 0.4-1KW.H/car Water Recycle System .
 √       Standard                 . Optional

T9 Fully Automatic Contactless Car Washing System with Output Power 1500W 1
