120 Bar Fully Automatic 4 Air Dryeres Car Wash Water Recycling System 360 Touch Free Car Wash 24-hour Service Automatic Car Washing Robot

1
MOQ
To be discussed
Price
120 Bar Fully Automatic 4 Air Dryeres Car Wash Water Recycling System 360 Touch Free Car Wash 24-hour Service Automatic Car Washing Robot
Features Gallery Product Description Request A Quote
Features
Specifications
Three Phase Electricity/overall Power: 380V/38Kw
Power Requirements(kw): 380V/22Kw/50Hz
Installation Requirements(mm): 7000*3800*3200
Maximum Car Wash Size(mm): 5600*2500*2050
Machine Warranty: 3 Years
Overall Weight/volume: 2100kg/12m³
Hanging Rail Length (mm): 7000mm
360 Degree Rotary Flushing: 304 Stainless Steel Rotating Arm
Main Water Pump Motor/power (kW): Energy Efficient Motor 380V/15kw
Fan Motor/power (kW): Embedded Mobile Air Drying 5.5kw*4
High Pressure Flushing Pressure: 60-100kg
Rinse The Car Body Once: 2 8 S
Water Consumption(L): 80-150L
Highlight:

360 Touch Free Car Wash Machine

,

Fully Automatic Car Washing Machine

,

4 air dryeres Car Washing Machine

Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Model Number: FS360
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15-25days
Payment Terms: ,L/C,D/A,D/P,T/T
Supply Ability: 100 sets/month
Product Description
FS360 Fully Automatic Car Wash System
Product Overview

This 120-bar fully automatic car wash system features 4 air dryers and water recycling capabilities, providing 24-hour service with 360-degree touch-free cleaning. The intelligent automatic car washing robot is designed for hassle-free operation and business optimization.

Special Feature: This headache-free machine enhances your business with minimal maintenance requirements. We prioritize component quality throughout the system, which has a total weight of 2.8 tons and occupies 8 cubic meters.

Design Features
  • Streamlined Design: Beautiful shape with modern, simple aesthetics that combine mechanical excellence with practical functionality
  • Stable Structure: Smooth overall construction with reasonable walking trolley design ensuring stable and safe machine operation
  • Quality Materials: Exquisite material selection balancing firmness and lightness for simplicity and durability
360° Rotating Arm Technology
  • CAE Optimized Design: Computer-aided simulation ensures proper nozzle placement and angle to prevent water hedging and maintain cleaning effectiveness
  • Intelligent Operation: Smart distance calculation with safety and collision prevention features, providing equalized pressure, consistent distance, and uniform speed washing
  • Complete Cleaning Cycle: High-pressure water pre-wash, shampoo application, wax coating with 360-degree coverage, and final drying
Technical Specifications
Product Name/Model FS360 Intelligent Version
Three Phase Electricity/Overall Power 380V/38Kw
Power Requirements 380V/22Kw/50Hz
Installation Requirements 7000×3800×3200 mm
Maximum Car Wash Size 5600×2500×2050 mm
Installation Costs Free Installation Guidance
Hanging Rail Length 7000 mm
Overall Weight/Volume 2100 kg / 12 m³
Central Processing Unit Embedded Central Processing Unit Industrial Control
360° Rotary Flushing 304 Stainless Steel Rotating Arm
Main Water Pump Motor/Power 380V/15kw
Fan Motor/Power 5.5kw×4
High Pressure Flushing Pressure 60-100 kg
Rinse Cycle Time 28 Seconds
Car Wash Time Quick Washing: 2 min / Fine Washing: 5 min
Liquid Consumption Metering Pump / 20-50 ml
Power Consumption 0.3-0.8 kWh per wash
Water Consumption 80-150 L per wash
Product Images

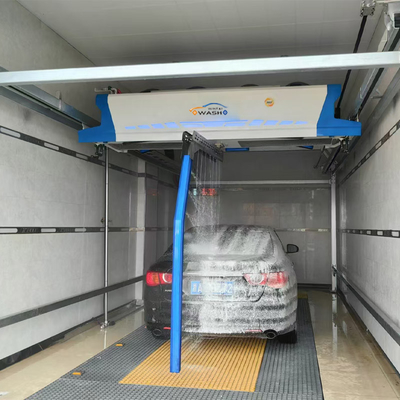

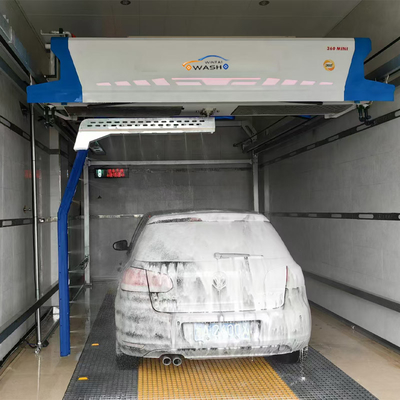

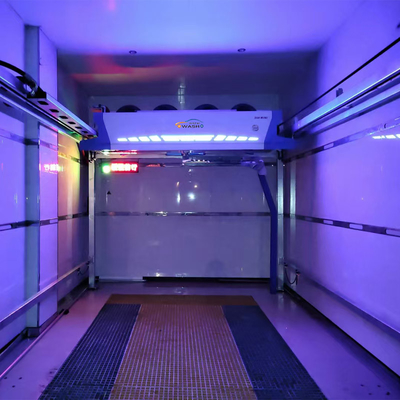

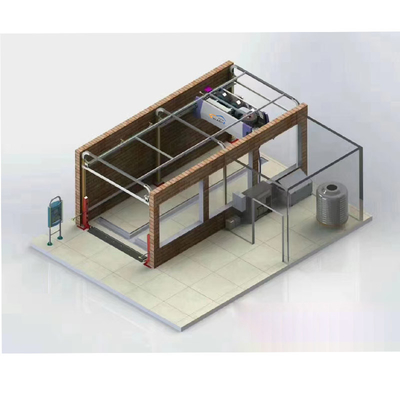

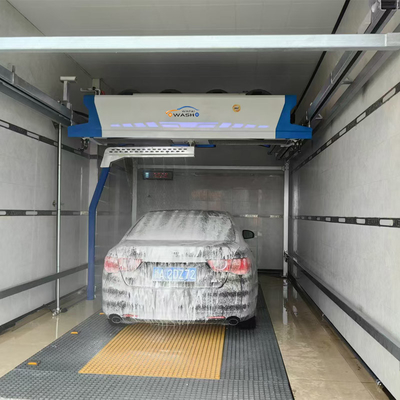

FS360 Car Wash System exterior view FS360 Car Wash System operational view FS360 Car Wash System detailed components FS360 Car Wash System technical diagram FS360 Car Wash System installation layout
