6 Air Dryeres Touchless Automatic Car Wash 24-hour Service Car Wash Water Reclamation System 100-130 Bar Reverse Osmosis Water Machine

1
MOQ
To be discussed
Price
6 Air Dryeres Touchless Automatic Car Wash 24-hour Service Car Wash Water Reclamation System 100-130 Bar Reverse Osmosis Water Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model: FS360-S
Three Phase Electricity/overall Power: 380V/50Kw
Power Requirements（kw）: 380V/33Kw/50Hz
Installation Requirements（mm）: 7000*3800*3200
Maximum Car Wash Size（mm）: 5600*2500*2050
Machine Warranty: 3 Years
Hanging Rail Length (mm): 7000mm
Overall Weight/volume: 2200kg/12m³
Main Water Pump Motor/power (kW): 380V/15kw
Fan Motor/power (kW): 5.5kw*6
Highlight:

Touchless Automatic Car Wash

,

Reverse Osmosis Automatic Car Wash
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Model Number: FS360-S
Document: FS360 car washing machine.pdf
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15-25 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 100 sets/mornth
Product Description
6 Air Dryers Touchless Automatic Car Wash with 24-hour Service
Product Overview

Advanced touchless automatic car wash system featuring 6 air dryers, 24-hour service capability, water reclamation system, and 100-130 bar reverse osmosis water purification.

Special Feature
Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.
Washing Modes
Fine Mode (5 minutes/car)
  • Start
  • Chassis/wheel rim flushing
  • Colorful high foam detergent spraying
  • High Pressure Car Body Flushing
  • Low foam detergent spraying
  • High pressure car body flushing
  • Wax Spraying
  • Wax Rain
  • Drying
Fast Mode (2 minutes/car)
  • Start
  • Chassis/wheel rim flushing
  • Colorful high foam detergent spraying
  • High Pressure Car Body Flushing
  • Wax Spraying
  • Wax Rain
  • Drying
Technical Specifications
Specification Details
Model FS360-S
Three phase electricity/overall power 380V/50Kw
Power requirements 380V/33Kw/50Hz
Installation requirements 7000*3800*3200 mm
Maximum car wash size 5600*2500*2050 mm
Hanging rail length 7000mm
Overall weight/volume 2200kg/12m³
360 degree rotary flushing 304 stainless steel rotating arm
Main water pump motor/power 380V/15kw
Fan motor/power 5.5kw*6
High pressure flushing pressure 60-100kg
Rinse the car body once 28S
Liquid consumption 20-50ml
Power consumption 0.3-0.8 kWh per wash
Water consumption 80-150L
Product Images

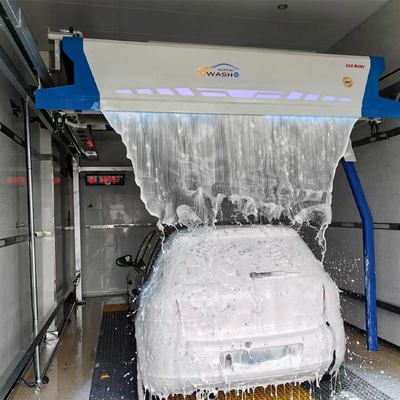

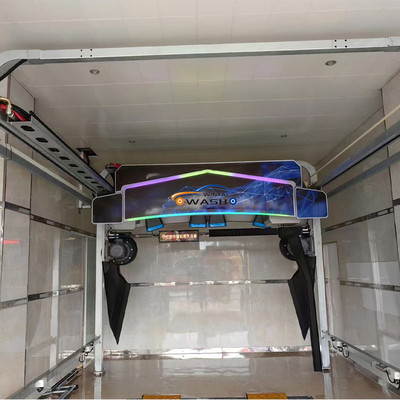

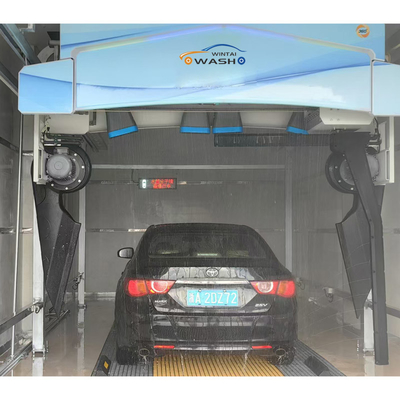

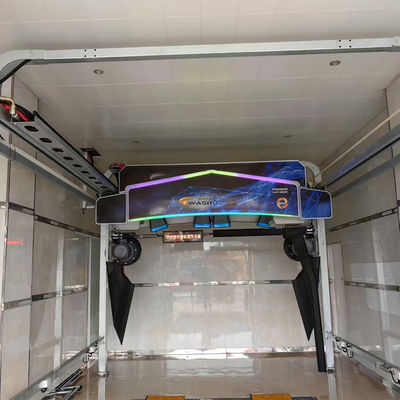

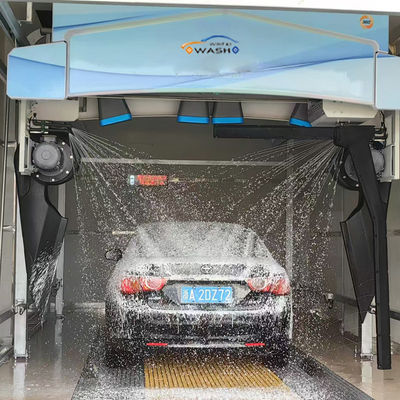

Touchless automatic car wash system exterior view Car wash system internal components and mechanism Car wash system in operation showing washing process
