Features

Specifications

Electricity Requirements: 380V/18.5Kw/50Hz

Installation Dimensions: 8000*3700*3400(mm)

Maximum Car Wash Size: 6000*2500*2050(mm)

Liquid Water Pump: 304 Stainless Steel

Water Pump Motor(kw): 380V/18.5kw

Flushing Pressure: 80-120kg

Liquid Consumption（ml）: Metering Pump/20-50ml

Power Consumption（kWh）: 0.5-0.8/per

Water Consumption（L）: 100-200L

Highlight:

Fully Automatic Contactless car wash machine

120 bar Contactless car wash machine

Reverse Osmosis Contactless car wash machine

Basic Infomation

Place of Origin: China

Brand Name: WINTAI

Certification: CE

Model Number: KP

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

KP-360 Contactless Car Wash Machine Fully Automatic Car Washing Machine With Water Flushing Pressure 120 Bar Reverse Osmosis Water Machine Automated Car Wash Systems

Product Description

Washing Model

Fine Mode (6 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Low foam detergent spraying--High pressure car body flushing--Wax Spraying--Wax Rain--Drying

Fast Mode (2 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Wax Spraying--Wax Rain--Dryin

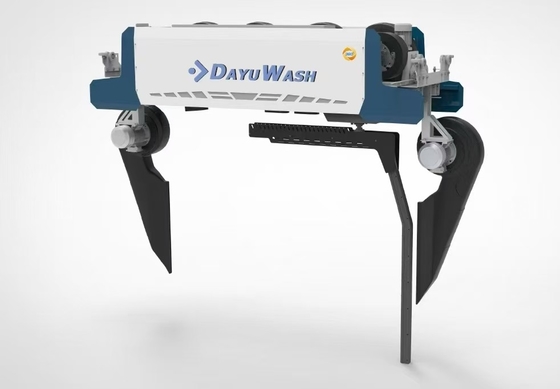

Built-in 360 degree rotating arms:

1. CAE computer aided simulation design, reasonable placement of nozzle angle and position, to avoid water hedging to weaken the cleaning effect.

2. Intelligent distance calculation, safety and collision prevention function. Equalize pressure, equalize distance and uniform speed washing way.

3.High pressure water pre-wash, shampoos, waxing coating with 360 degree coverage, and finally drying.

Parameter

Product Name/Model	FP360 Intelligent version
Three phase electricity/overall power	380V/55Kw
Power requirements(kw)	380V/22Kw/50Hz
Installation requirements(mm)	*800038003400*
Maximum car wash size(mm)	*600025002050*
Installation costs	Free installation guidance
Hanging rail length (mm)	8000mm
Overall weight/volume	2650kg/13m³
Central Processing Unit	Embedded central processing unit industrial control
360 degree rotary flushing	304 stainless steel rotating arm
Main water pump motor/power (kW)	380V/18.5kw
Fan motor/power (kW)	*5.5kw4or 5.5kw6*
High pressure flushing pressure	60-120kg
Rinse the car body once	2 8 S
Car wash time(min)	Quick washing2min/ Fine washing5min
Liquid consumption(ml)	Metering pump/20-50ml
Power consumption(kWh)	0.5-0.8/per
Water consumption(L)	100-200L

KP-360 Contactless Car Wash Machine Fully Automatic Car Washing Machine With Water Flushing Pressure 120 Bar Reverse Osmosis Water Machine Automated Car Wash Systems 0

KP-360 Contactless Car Wash Machine Fully Automatic Car Washing Machine With Water Flushing Pressure 120 Bar Reverse Osmosis Water Machine Automated Car Wash Systems 2
