Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems

1
MOQ
To be discussed
Price
Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Three Phase Electricity/overall Power: 380V/40Kw
Power Requirements(kw): 380V/25Kw/50Hz
Installation Requirements(mm): 7000*3500*3200
Maximum Car Wash Size(mm): 6000*2600*2050
Machine Warranty: 3 Years
Overall Weight/volume: 2100kg/11m³
Main Water Pump Motor/power (kW): 380V/15kw
Fan Motor/power (kW): 5.5kw * 4
High Pressure Flushing Pressure: 60-100kg
Rinse The Car Body Once: 30s
Liquid Consumption(ml): Metering Pump/20-50ml
Power Consumption (kWh): 0.10.15-0.3 Per Vehicle
Water Consumption (L): 80-150L
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Model Number: LJ360
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15-25 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 100 sets/mornth
Product Description

LJ360, economic type,two axis moving,4 dryers~6 dryers are optional,wheel brushes are optional,

Washing Model

Fine Mode (5 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Low foam detergent spraying--High pressure car body flushing--Wax Spraying--Wax Rain--Drying

Fast Mode (2 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Wax Spraying--Wax Rain--Dryin

Standard Cleaning age

1. Low foam cleaning liquid,it’s called wipe free cleaning liquid also, containing soil loosening agent,

2. High foam cleaning liquid,it’s called magic shampoo also,suitable for extremely dirty cars.It has car care function.

3. Colorful bubble cleaning liquid,it’s called colorful waterfall.

4. Water wax



Laser pipe cutting machine

All the tube and frame firstly cutting by the laser machine with high precision.

Laser board cutting machine

All the steel board will be cutting by the laser machine with high precision.

CNC bending machine

To make bend the frame directly without any welding point, can the frame more stable.

Hot-dip Galvanized frame without welding.

The frame adopts laser high-precision cutting, CNC bending, 304 stainless steel high-strength screw fixation, the overall operation precision is higher than the welding frame precision, more stable and safe.

The frame steel adopts Q235 international standard profile, the thickness is 4mm, the surface is treated by pickling, phosphating and hot dip galvanizing, SGS salt spray test grade report is grade 10.

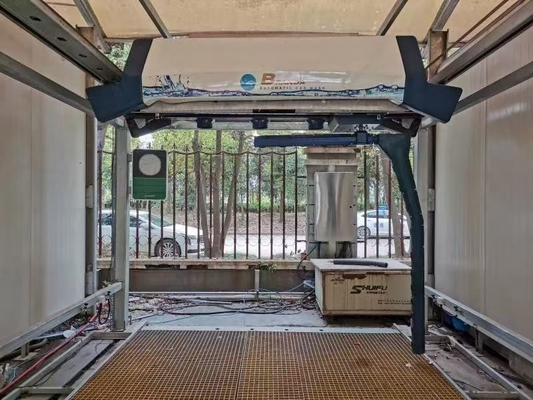

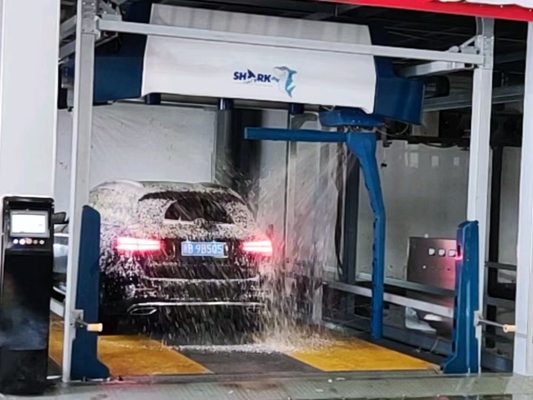

Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems 0

Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems 1

Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems 2

Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems 3

Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems 4

Two axis moving Touchless Automatic Car Wash Reverse Osmosis System Automated Car Wash Systems 5
